2-5mm / Min Conveyor Speed SMT Glue Dispenser Machine L580*W580mm Coating Scope

Large Image : 2-5mm / Min Conveyor Speed SMT Glue Dispenser Machine L580*W580mm Coating Scope

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-CC3L

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7-15 working days
Supply Ability:	30Set/Month

Contact Now

Detailed Product Description

Coating Scope:	L580*W580mm	Axis:	X,Y,Z
Control Mode:	IPC+control Card	Conveyor Speed:	2-5mm/min
Nozzle Type:	Pin Type Spray Nozzle,film Nozzle	Material Detection:	Standard
Total Power:	Total Power	Draft Capacity:	15 M3 /min
Material Volume:	5L	Color:	White
High Light:	automatic glue dispensing machine , glue coating machine

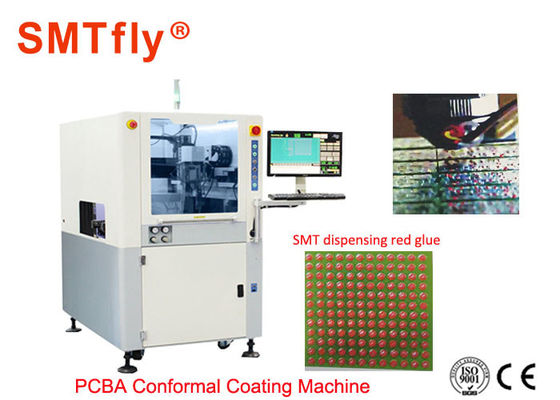

Using Red Glue Conformal Coating Machine for SMT / PCB Technical parameters:

Model	SMTfly-CC3L
External Size LW H	101013601675mm(LWH)
Weight	500KG
Control Mode	IPC+control card
Software	Software+Windows
Programming	Teaching box
Axis	X,Y,Z
Drive	Servo motor +ball screw
Max. move speed	800mm/s
Coating scope	L580*W580mm
Max .PCB height	up 90 down 90mm
Rotation angle	±180º
Positioning accuracy	0.02mm
Repeat accuracy	0.02mm
Conveyor quantity	1
Width adjusting mode	auto
Width adjust speed	250mm/min
Conveyor height	900±20mm
Conveyor speed	2-5mm/min
Conveyor direction	L-R(R-L optional)
PCB edge space	≧5mm
Conveyor motor power	DC24V 69W
Communication port	SMEMA port
Nozzle quantity	2 sets
Nozzle type	pin type spray nozzle,film nozzle
Tilt angle	0~35º
Single coating width	2-30mm(According to the selected value)
Material volume	5L
Draft capacity	15 m³ /min
Power supply	AC220V 50/60Hz
Total power	2.2KW
Pressure	0.4Mpa
Programming panel	Standard
Material Detection	Standard
Camera location	Standard
Clamp device	Standard
Bar code	Standard
UPS	Standard
Waste recycling	Standard

Using Red Glue Conformal Coating Machine for SMT / PCB Features:

1. Motion controller use computer+,WINDOWS operating system, failure alarming menu
2. Available by manual teaching programming which is easy and quick
3. Integral steel moving platform, to ensure the smooth running
4. X, Y, Z three-axis motion
5. Servo motor+ball screw drive
6. Run precision of 0.02mm,automatically eliminate difference
7. Nozzles automatic cleaning device
8. Special aluminum alloy rail and stainless steel conveyor chain
9. Independent material container
10. Equip with gas collection, exhausting devices
11. SMEMA port to connect with other devices

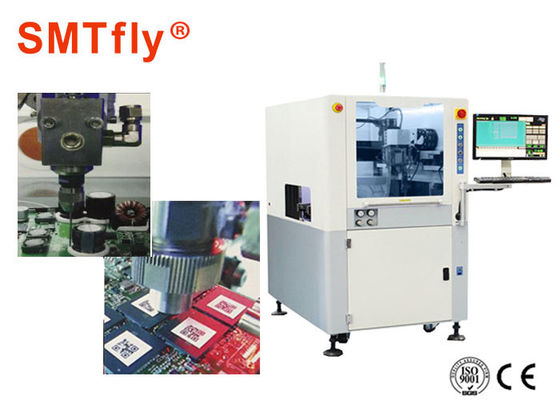

Glue Conformal Coating Machine for SMT / PCB Nozzle option and function:

1.Can equipped with 2 sets of nozzle.
It can choose 3 from 5 that SA-W5, SA-W3,DJ-01, LA-W30, SC-W10
2 of them can be 35° tilt to achieve 5 axis working. The nozzle can down 75mm, and 3 nozzles can switch crbitrarily. The whole holder can be 360° rotation which can make high efficiency accuracy no-deadcorner
