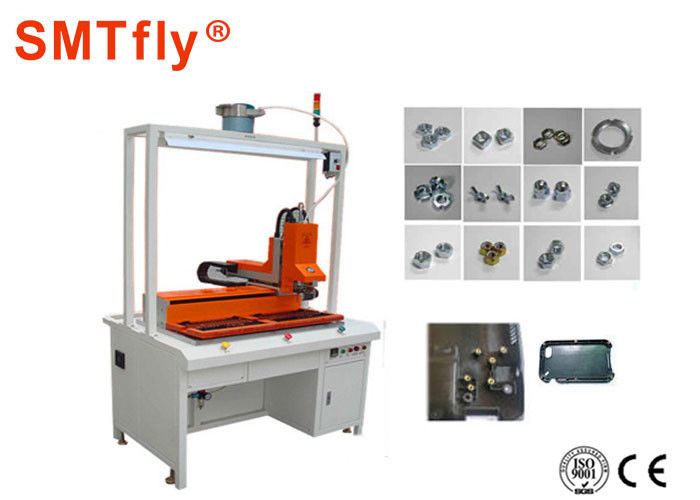

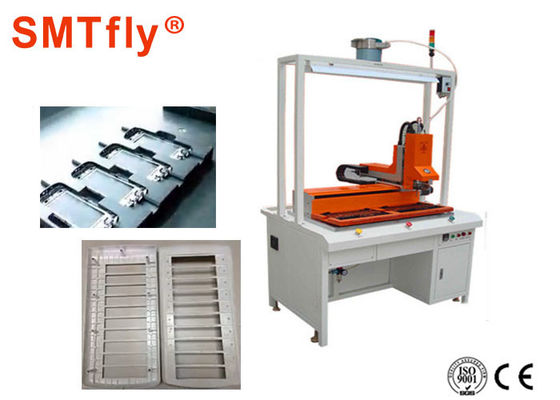

White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision

China White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision supplier
White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision supplier White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision supplier

Large Image :  White 2KW Screw Tightener Automatic Nut Tightening Machine With 0.01mm Precision

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-LM1A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 100Sets/Month
Detailed Product Description
Control Method: PLC Air Pressure: 0.4-0.7Mpa
Working Area: 580*230*35/90/160 Repeatable Precision: ±0.01mm
Power Rate: 2KW Color: White
High Light:

automatic screw driving machine

,

automatic screw feeder machine


Screw Tightening Machine-Repeatable Pricision Barrel Nut Automatic Fasteners Specification:


Model

SMTfly-LM1A

Brand name

SMTfly

Color

White

Application

Plastic Part

Working Area

580*230*35/90/160mm

Machine Weight

260KG

Control Method

PLC

Air Pressure

0.4-0.7Mpa

Machine Size

1400*700*600mm

Power Supply

220/110V

Working Area

580*230*35/90/160

Capacity

3500-4500pcs

Air Pressure

0.4-0.7MPa

Power rate

2KW

Repeatable Precision

±0.01mm

Working Tem

0-250℃

Certification

CE

Packaging

Plywood Case


Screw Nut Heat Inserting Machines Feature:

1. Equipment designed for three-axis stepper interlocking manner, driven automatic temperature heating system, a single point of mobile implant nut machine;
2. Using an exclusive development of high-performance modules + Concord Taiwan imported man-machine interface operating system, enabling the production of programming in any order, store, recall, modify any data of different products.
3. Coordinates Adjustment directly set the value and move the coordinates are two ways to set the whole Chinese programming simple and quick;
4. The use of imported triaxial ensure accuracy;
5. Repeat accuracy 0.5-1.0mm;
6. The non-blocking nut crashing chute (nut asked to oil and copper scrap, uniform size);
7. nut implanted plastic shell, the strength up to standard;
8. The automatic feed, heat implanted at once;
9. Every time an implant nuts, nut regardless of direction per hour 1400-2000PCS nuts (actual production efficiency in order to prevail with plastic shell and nut)
