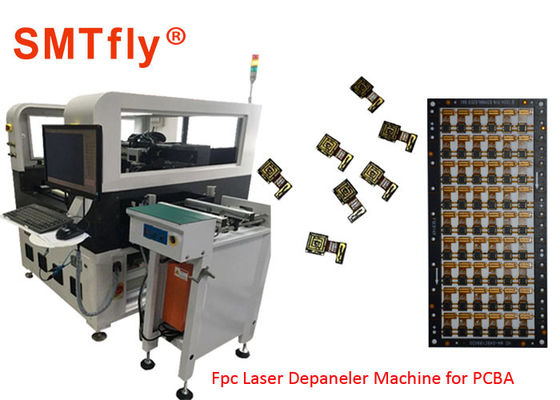

Standard 460*460mm In Line Laser PCB Depaneling Machine Compact Size SMTfly-5L
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Laser Pcb Separator | Laser Wavelength: | 355nm |
|---|---|---|---|
| Positioning Precision: | ±2μm | Laser Scanning Speed: | 2500mm/s (max) |
| Laser Power: | 10W/12W/15W/18W@30KHz | Galvanometer Working Field Per One Process: | 40mmх40mm |
| Color: | White | Warranty: | 1Year |
| High Light: | pcb depaneling equipment,uv laser cutting machine |
||
Standard 460*460mm In-line PCB/FPC Separator Cut Machine,SMTfly-5LSpecification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/17W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmX460mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
Standard 460*460mm In-line PCB/FPC Separator Cut Machine,SMTfly-5L Features:
- Pre-camera vision product position registration and model check
- Coherent Avia NX UV laser with HurrySCAN head
- High capacity BOFA dust collector
- User friendly Window based software
- PCB flexible product jig adjustable for different board size
- High resolution and accurate Z stage with auto-focus function
- Large area low friction front loading platform for sliding multiple product jigs
- Fully covered class 1 safety enclosure
- Able to do cutting and marking together
- Compact size
Printed Circuit Board Laser Depanelizer System Advantages:
1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3.Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
Principle of PCB Laser Cutting Machine:
