Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC

China Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC supplier
Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC supplier Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC supplier

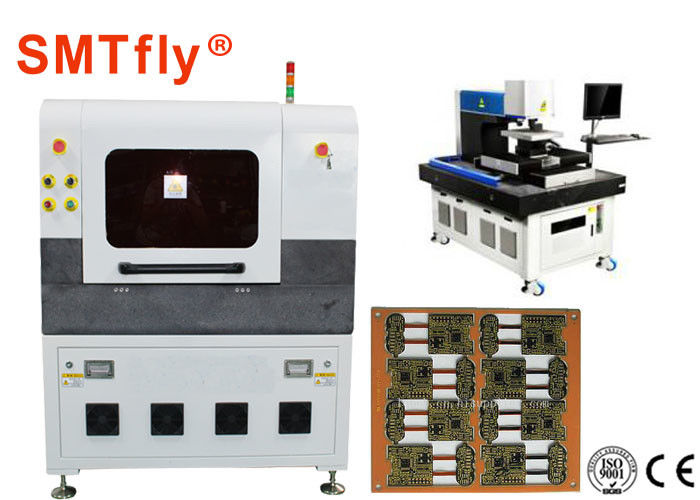

Large Image :  Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/1Set
Packaging Details: Wooden Box
Delivery Time: After payment 15-30 working days
Detailed Product Description
Laser Wavelength: 355nm Positioning Precision: ±2μm
Laser Scanning Speed: 2500mm/s (max) Repetition Precision: ±1μm
Galvanometer Working Field Per One Process: 40mmх40mm Color: White
Warranty: 1Year Power: 220V 380V
High Light:

uv laser cutting machine

,

pcb laser cutting machine



Custom PCB UV Laser Cutting Machine for Printed Circuit Board FPC,SMTfly-5L Advantages



1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance



​Custom PCB UV Laser Cutting Machine for Printed Circuit Board FPC Specification:



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm





PCB UV Laser Cutting Machine-Laser PCB Depaneling Machine Features:



  • Pre-camera vision product position registration and model check
  • Coherent Avia NX UV laser with HurrySCAN head
  • High capacity BOFA dust collector
  • User friendly Window based software
  • PCB flexible product jig adjustable for different board size
  • High resolution and accurate Z stage with auto-focus function
  • Large area low friction front loading platform for sliding multiple product jigs
  • Fully covered class 1 safety enclosure
  • Able to do cutting and marking together
  • Compact size



Advantages of Laser PCB depaneling/singulation:



  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards



PCB Separator Machine-Principle of PCB Laser Cutting Machine:

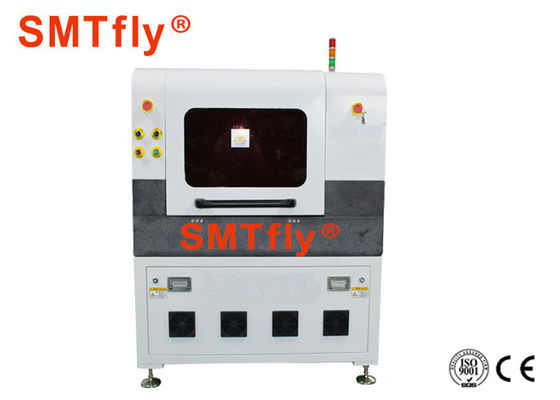

Custom UV Laser PCB Laser Cutter Machine For Printed Circuit Board FPC
