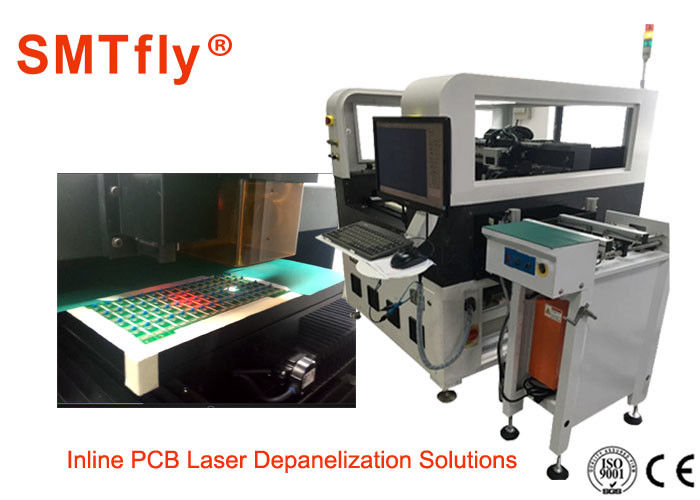

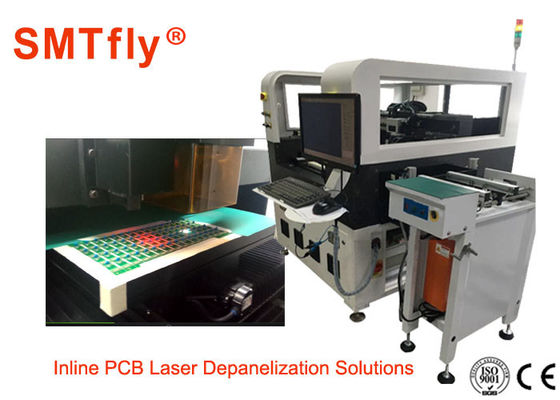

High Automatic Laser PCB Depanelizer Machine , Laser FPC Machine 220V 380V
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Laser Wavelength: | 355nm | Positioning Precision: | ±2μm |
|---|---|---|---|
| Laser Scanning Speed: | 2500mm/s (max) | Repetition Precision: | ±1μm |
| Galvanometer Working Field Per One Process: | 40mmх40mm | Color: | White |
| Warranty: | 1Year | Power: | 220V 380V |
| High Light: | pcb depaneling equipment,pcb laser cutting machine |
||
Laser PCB Depaneling Machine-PCB Depanelization Systems,SMTfly-5L
Advantages of Laser PCB Depaneling/Singulation:
- No mechanical stress on substrates or circuits
- No tooling cost or consumables.
- Versatility – ability to change applications by simply changing settings
- Fiducial Recognition – more precise and clean cut
- Optical Recognition before PCB depaneling/singulation process begins.
- Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
- Extraordinary cut quality holding tolerances as small as < 50 microns.
- No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards
Laser PCB Depaneling Machine-PCB Depanelization Systems Features:
1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3. Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance.
Custom PCB UV Laser Cutting Machine for Printed Circuit Board FPC Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/17W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmX460mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
PCB Separator Machine-Principle of PCB Laser Cutting Machine:
Our Service:
1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are
your reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 10 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes.
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.
