High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design

China High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design supplier
High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design supplier High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design supplier

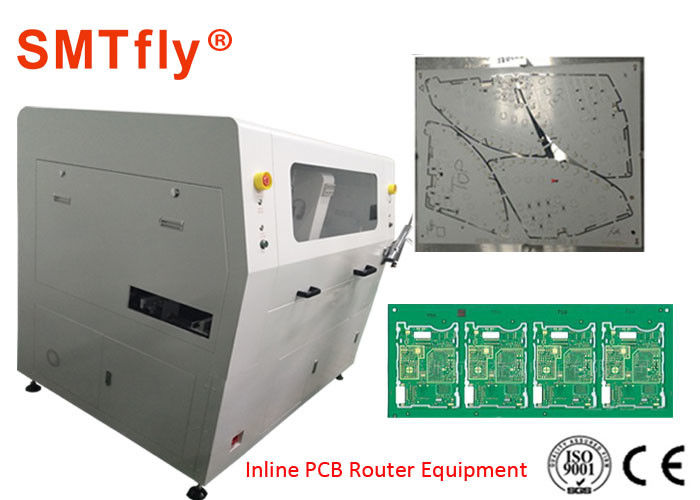

Large Image :  High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F06

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
X, Y Cutting Speed: 0 ~ 100mm / S Machine Repeat Ability: ± 0.02mm
Host Voltage: 220V 1ψ 50 / 60HZ Power Consumption: 3KVA
Dust Collection: Dust On The 2HP Cutting Accuracy: ± 0.05mm
High Light:

cnc pcb router machine

,

pcb depanelizer machine



High Accuracy Flex PCB Routing Machine by PCB Depaneling Router Machine,SMTfly-F06



   The SMTfly-F06 is a user-friendly and intelligent online circuit board cutting machine equipped with a high-speed CCD vision registration correction device that uses the MARTIN OR algorithm to ensure stable operation at high speed and high accuracy. Using a clean vacuum device, improve the cleanliness of PCBA. Use NSK high-speed spindle, cutting stress is small, smooth edge. Particularly suitable for high capacity, high precision, high demand customers.



PCB Depaneling Router Machine Features:



1. Use MARTIN OR algorithm

Automatically optimize the cutting path;

Servo error real-time tracking feedback;

Camera fixed-point, positioning axial position compensation.



2. CCD scanning function

The industry-leading full-screen PCBA scanning, changing the traditional visual guidance;

Shorten the programming time, the path of real-time display, easy to modify.



3. Two-dimensional code automatically transfer procedures

Two-dimensional code through the fixture can be transferred directly to the program, convenient, simple, not wrong;

Intelligent switching products.



4. Running error, full monitoring

Cutting process, marking the error real-time recording;

Motion axis error real-time record;

The error value can be set according to the product needs.



5. Cutter intelligent mode:

Adjust the depth of the blade according to the PCB thickness to improve the utilization rate and save the cost;

According to the product needs to define the use of standard milling cutter;

Change the cutter, without redo or modify the program, click the conversion can be achieved.



6. Transfer order mode, automatic cutting

Cutting program with the production model and the number of combinations, based on PMC production plans;

Avoid lead production and production capacity is not clear;

Avoid non-production process modification procedures;

Human-computer separation.



7. Industry 4.0 - MES system

Server data automatically transferred;

Upload machine data and production data

Real-time monitoring of equipment status.



High Accuracy Flex PCB Routing Machine by PCB Depaneling Router Machine Specification:



Cutting Speed

0 ~ 100mm / s

Cutting Repeat Ability

0.1mm

Machine Repeat Ability

± 0.02mm

Positioning Accuracy

± 0.02mm

Applicable PCB Thickness

0.3-2.0 mm

Working Range

Standard(300*300mm)Customize

Workbench

Double

Vision System

High Resolution Digital Camera

Drive Motor

AC Brushless Servo Motor

Motor Resolution

± 0.01mm

Spindle Speed

Max 60,000 rpm

Air Pressure

Above 4.5kg/cm2

Power Consumption

3KVA

Dust Collection Methods

under the dust (standard) or on the dust

Voltage

AC380V, 50HZ

on the Dust Machine Size

500*750*1350mm

Under the Dust Machine Size

665*635*1610mm

Weight

1300KG





Spindle for PCB Routing Machine-PCB Separator Equipment:

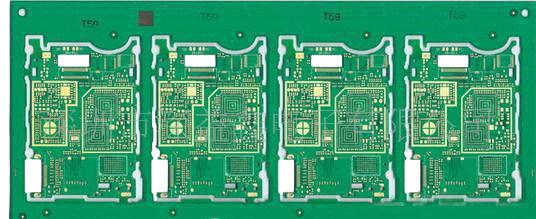

High Accuracy Flex Printed Circuit Board Router Machine User - Friendly Design





Online PCB Depanelizer Description:



With the popularization of Industry 4.0 and the increase of labor costs, automation of production and intelligence have entered the factory each station, post.



SMTfly-06 online PCB Depanelizer design and production in 2010, in a large number of practical use, according to production line health.



Production processes and personnel continue to improve the operation, which has the following advantages.



1. Software development, software stability, can enjoy the upgrade service.



2. The whole 9-axis linkage, the use of industrial control systems, stable and reliable scalability



3. Nozzle multi-point control, can choose the nozzle suck, put the setting, reduce the chances of losing the plate, the local suction nozzle leakage does not affect the whole plate crawl.



4. Laser foolproof, altimeter to prevent crushing products, intelligent judgment plate in the sub-board situation, if the board is abnormal, the machine will not cut the alarm.
