350*350mm PCB Depaneling Router Machine / LED Trip Separator SMTfly-F03

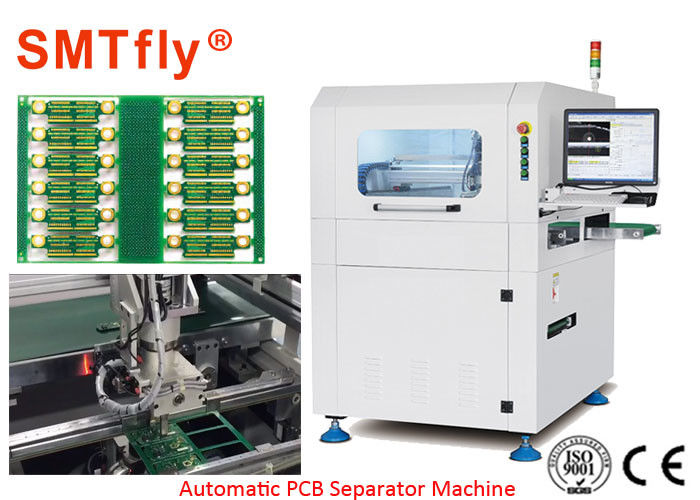

Large Image : 350*350mm PCB Depaneling Router Machine / LED Trip Separator SMTfly-F03

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-F03

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	Wooden Box
Delivery Time:	15 Working Days after Payment
Supply Ability:	30Sets/Month

Contact Now

Detailed Product Description

Max PCB Size:	350*350mm	Transmission Height:	900±50mm
Cooling Type:	Air Compression	Transmission Direction:	Left -> Right
Cutting Spindle/Speed:	60,000rpm/min	Cutting Accuracy:	±0.5mm
High Light:	cnc pcb router machine , pcb depanelizer machine

350*350mmOnline LED Trip Separator for CNC Router PCB Depanelization,SMTfly-F03 Features:

1. Automatic tool change;

2. ESD monitoring;

3. Cutting stress feedback;

4. Automatic production mode;
5. Linkage between Spec statistic function and customer’s management system-ERP;

6. Can be equipped with explosion-proof function of vacuum cleaner.

CNC Router PCB Depanelization,SMTfly-F03 Specification:

Model	SMTfly-F03
Machine Size	100012001533mm
Weight	Approx 1900kgs
Max PCB Size	350*350mm
PCB Thickness	0.4-6mm
Transmission height	900±50mm
Transmission direction	Left -> Right
Transmission speed	1500mm/s(max)/adjustable
Feeding plate type	Section-type transportation guide rail
Rail width adjustment	Automatic
Communication signal of upper and lower computers	SMEMA
PCB Positioning	Upper and lower guide rail clamping
Picking system	360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most
Cutting spindl/speed	Germany KAVO, 60,000rpm/min
Cooling type	Air compression
ESD monitoring	Yes
Automatic tool change	Yes
Cutting stress feedback	Yes
Break blade check	Yes
Cutting speed	1-200mm/s
Cutting accuracy	±0.5mm
Repeat positioning accuracy	±0.01mm
Coordinate moving speed	1000mm/s
Out plate type	ESD belt transportation/batch panel forwarding unit
Waste collection type	Out off the track
Procedure programming	GERBER drawing import/Editing program through visual system
Air supply	5-8kg/cm2
Power supply	AC380V±5%, 50/60Hz, 3KW

PCB Routing for PCB Separator Machine High Reliability Cutting System:

Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.

Super Vision System:

A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it supports all functions of machine calibration, compensation and positioning, featuring highest ability and anti-disturbance capacity.

High reliability PCB Gripper System:

A perfect solution without jig cutting; A PCB clamping size scope of 2mm, the pick up device can realize rapid loading/uploading, featuring high stability and low cost.

ESD ATPD Panel Forwarding System:

Panel forwarding solution 1: the cut PCB will be delivered by clamping system to belt transmission line, and then sent by ESD transmission line via machine into assembling line, or be picked up and loaded into product case by customized manipulator solution.

Panel forwarding solution 2: use batch panel forwarding unit ARM-1 dismantle belt transmission line from machine, insert panel forwarding unit from behind the machine, and directly load the panel into blister box in ARM-1 via clamping system. The solution is featured By simplicity and convenience.

350*350mm PCB Depaneling Router Machine / LED Trip Separator SMTfly-F03

Automatic PCB Depaneling Separator Machine - PCB Router:

An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.
