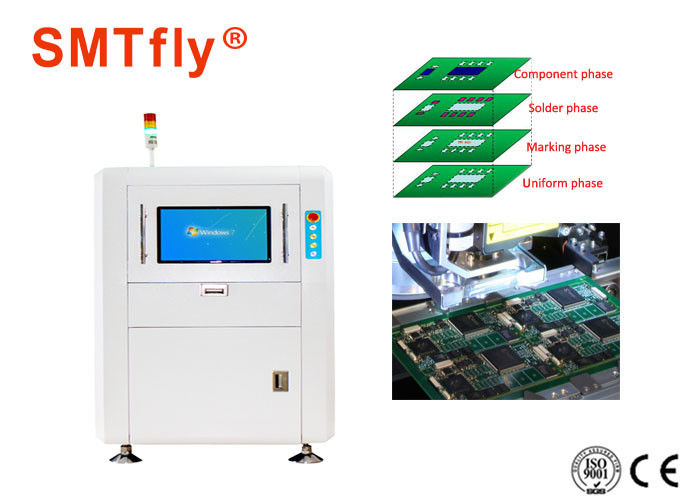

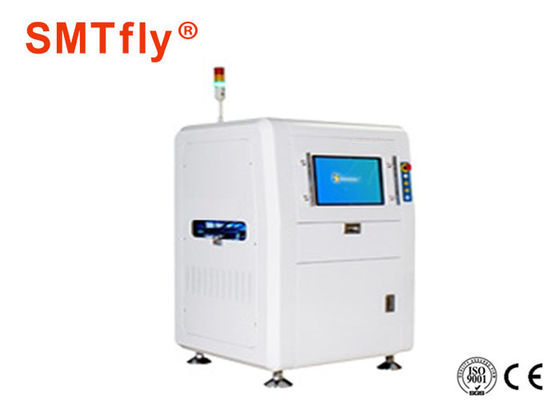

High Spedd AOI Inspection Machine / Pcb Board Testing Equipment Custom Operating System
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| PCB Thickness: | 2 - 8mm | Image Processing Speed: | 50ms |
|---|---|---|---|
| Positioning Accuracy: | <10um | Moving Speed: | 700mm/s |
| Air Supply: | 4 - 6 Bar | Color: | White |
| High Light: | smt inspection machine,automatic optical inspection equipment |
||
Inspection and Testing Machine- AOI for PCB & Solder Paste,SMTfly-27X Features:
- 5 Megapixels high speed industrial camera & telecentric lens,with high resolution can applied in high precision mounting quality inspection
- The world’s first automatic lifting vision module,can deal with complex mixed mounting/plug-in circuit board
- The camera can automatically identify the bar code on both side of the PCB and make the corresponding information storage,easy to save and trace the product information
- The 27X designing with its flexible structure,can work as the final quality control station especially in large server or motherboard
Inspection and Testing Machine- AOI for PCB & Solder Paste Specification:
| Mechanical system | PCB Conveyor | Belt conveyor system(Chain conveyor for option),left to right(Optional right to left)PCB fixing:bottom-up,Automatic PCB loading and unloading,Adjustable clearance,conforming SMEMA standard,The conveyor’s height adjust range:900+20mm | |
|
PCB size
|
65*65mm-510*460mm can make other size according to client’s demands | ||
| PCB thickness | 2 - 8mm | ||
| PCB warp age | <2mm (fixture for correction of deformation) | ||
| Component height | Top<50mm, Bottom<30mm (special requirements can be customized) | ||
|
X,Y Platform |
Driver | AC Sever,camera moves in the directions of X/Y/Z | |
| Positioning accuracy | <10um | ||
| Moving speed | 700mm/s | ||
| Z Axis | Height adjust between50-100mm,safety distance 50mm | ||
| Identifiable component height:1mm-50mm | |||
| Adjust method: Automatically | |||
| Software system | operating system | Microsoft, Windows7 X64 | |
|
Identification control system
|
Characteristic | Set template images real time,count data and error gate value automatically,Three marks correction input CAD date locate the templates automatically,the operator can combine algorithms according the requirement | |
| Operation interface | Graphical programming Chinese / English | ||
| Offline Programming | Offline programming and Offline debugging | ||
Inspection and Testing Machine- AOI for PCB & Solder Paste Description:
SMTfly-27X on the basis of traditional AOI increased the Z axis,can automatically adjust the focus by lifting the vision module,get the most clear image quality.can be used in the inspection of the SMT,wave soldering joint and very high plug-in components.
AOI Inspection Machine,SMTfly-27X Test Effect Chart:
