Detailed Product Description
Per-image Time: <240ms(15um) PCB Thickness: 0.5mm-3.0mm
Moving Speed: 500mm/s PCB Warp Tolerance: <2mm
Air Supply: 0.5MPA.40CM3/min Wave Soldering Inspect: 01005&0.3mm Pitch()15um
High Light:

smt inspection machine

,

automatic optical inspection equipment

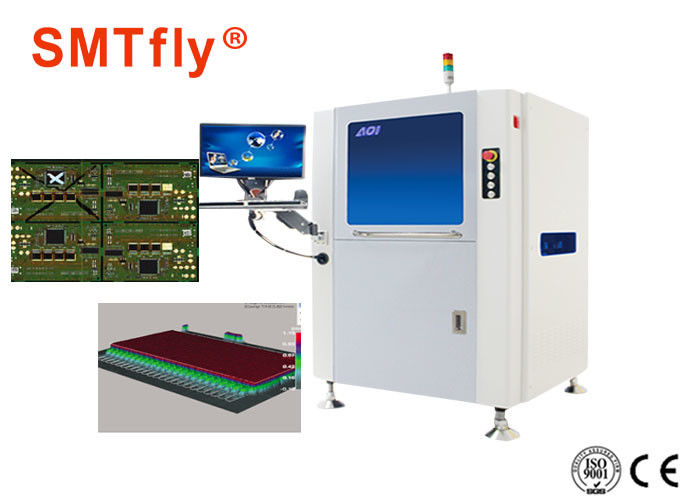

Missing-solder AOI Solder Paste Detection Method AOI Inspection Machine,SMTfly-S810 Specification:



Category Item SMTfly-S810
Recognition system Inspection The vector image algorithms include logic operation, distance of luminance boundary, chip tracing,OCR/OCV luminance/color template matching, color distance, color extraction (RGB&HSV)Value-range of luminance, offset of luminance, the minimum variation span of luminace,etc….more than 30 kinds of the most advanced algorithms
Camera Distal high speed CCD 5m pixel camera,20um(12um,15um,10um for option)
Lens High-resolutiontelecentric Lens
Lamp-house Rings RGB led lamp-house
FOV 40.95*40.95mm(20um)30.68*30.68(15um)
0201 Chip <7.6m
Per-image Time <240ms(15um)
Paste Printing Time Missing,shift,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged
Component Defects Overflow,insufficeient,short solder,stain
Solder Defected

Overflow,insufficient,short solder, solder void



Wave Soldering Inspect 01005&0.3mm pitch()15um
Mechanism System PCB Conveyor Left to right ,PCB fixing:bottom-up,PCB warp correction ,Automatic PCB loading and unloading ,Adjustable clearance,Conforming SMEMA standard,Orbit clearance: 900±20mm
PCB size 50×70mm-400×330mm
PCB thickness 0.5mm-3.0mm
PCB warp Tolerance <2mm
Component Clearance TOP≤25mm, BOT≤25mm
Driver AC server, camera moves in the directions of X/Y
Positioning accuracy <10um
Moving Speed 500mm/s
Soft System Operation System Microsoft Windows 7 X64
Operation Graphic programming,Chinese,English
Programming Support office programming and debugging
Computer Industrial Computer, Intel four-core 17 CPU,Memory:16G,Hard disk:1TB
Display 21 inch TFT
Network Multi machine control The operator can control multi same machines in the control time
Network NG adaptable, check and correct PCBA defects at repair station
Communication port SMEMA,RS232,RJ45
Other Air Supply 0.5MPA.40CM3/min
Machine Dimensions 100*96*160cm
Weight 580KG
Power Supply AC220V,10%,Single phase 5A 50/60HZ,POWER CONSUMPTION 1000W WITH ups inside
Working Environment Temperature 10-40℃,humidity 30-802%RH



Missing-solder AOI Solder Paste Detection Method AOI Inspection Machine Feature:


  1. Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability;
  2. The entire PCB match capability can detect extra parts at any location;
  3. Germany imported 5.0 MP industry cameras;
  4. The mew light source design, effectively eliminated the NG parts;
  5. Offline programming;
  6. Import control system to ensure high-precision equipment operation;
  7. The equipment can communicate directly with the NG buffer device and other equipment through the communicate protocol;
  8. Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator.

Various vector image algorithms to get the best inspection capability



The vector image algorithms include logic operation ,distance of luminance boundary, chip tracing,OCR/OCB Luminance/color template matching, color distance, color distance, color extraction (RGB&HSV),VALUE-range of luminance offset of luminance, the minimum variation span of luminace,etc…More than 30 Kinds of the most advanced algorithms

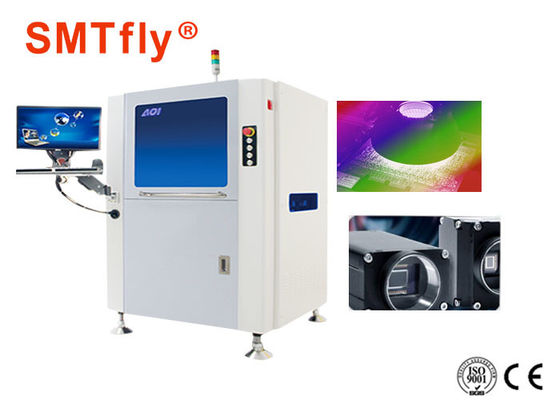

Germany imported 5.0 MP Industry cameras



Wight a high-color reproduction, collocation a high-resolutiontelecentric lens, high NG identification, provide high-definition image output the AOI



Control system



All major components are used internationally renowned brands, in the premise of ensuring the stability and accuracy of the movement equipment with high service life and low failure rate.



The entire PCB match capability can detect extra part at any location



The entire PCB match function

High frame rate industrial cameras with telocentric lens

High-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software entire board matching algorithm, can be used detect extra parts,foreign matter, scratches and other information on the PCB



Multi machines one operator, intelligent communication



Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator
