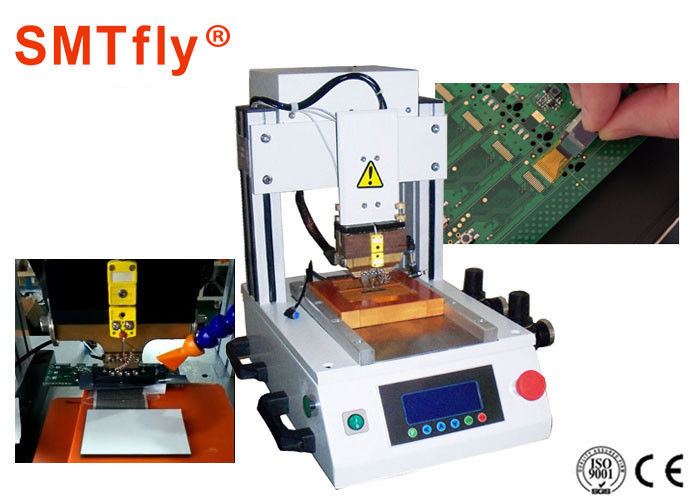

Heat Pulse PCB Bonding Machine , Hot Bar Soldering Equipment 1 Set Fixture

Heat Pulse PCB Hot Bar Soldering Machine for FPC HSC FFC to PCB,SMTfly-PP1S​ Features:

• Closed Loop PID temperature control with visible LED display;
• LCD display programmable pressure switch for precise force control;
• Each heating cycle is triggered by a real time pressure sensor;
• Floating thermode ensures consistent pressure and heat transfer
• between the thermode head and the parts to be joined;
• Silicon rubber can be fitted in bonding Heat Seal Connectors
• between LCD and PCB;
• Standard workpiece holder is mounted on a linear guideway and
• designed to allow for easy changeover and repeatable operation;
• Parts registration is adjusted by micrometer and secured by vacuum
• Lock;
• Optional CCD system for fine pitch component.

Heat Pulse PCB Hot Bar Soldering Machine for FPC HSC FFC to PCB Specification:

Heat Pulse PCB Hot Bar Soldering Machine for FPC HSC FFC to PCB Application:

Apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc

use constant temperature to hot pressing

1. mainly apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc,

2. use constant temperature to hot pressing.

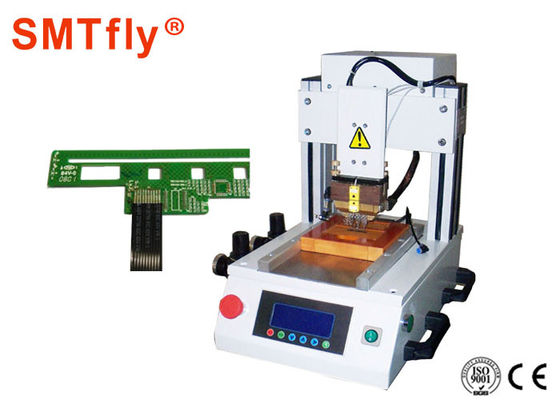

Sample for Hotbar Bonding Machine:
