Highly Automated Industrial Soldering Machine For FPC HSC FFC Small Size

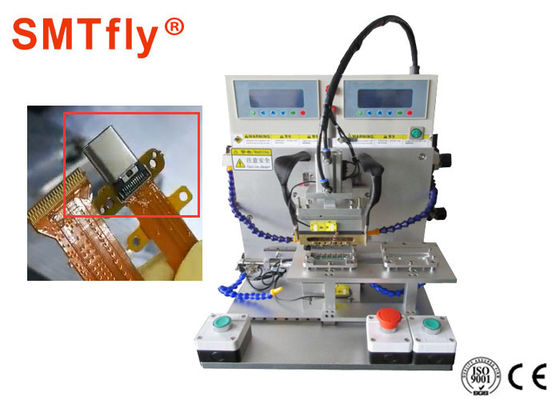

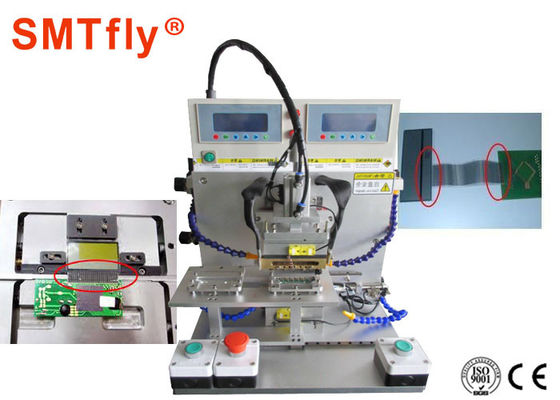

Large Image : Highly Automated Industrial Soldering Machine For FPC HSC FFC Small Size

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-PP3A

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7 working days
Supply Ability:	60Sets/Month

Contact Now

Detailed Product Description

Welding Pressure:	04.-30N	Weld Flatness:	0.02mm
Welding Pitch:	> 0.1mm	Maximum Working Area:	120 × 120mm
Heating Settings:	Three Sections	Color:	White
High Light:	hot bar soldering equipment , pcb bonding machine

Automated Hot Bar Soldering System for FPC HSC FFC,SMTfly-PP3A Features:

Corresponding to different products, heating rate for selection
Molybdenum alloy pressure head to ensure that the average temperature, fast heating and service life expertise
Thermode particularly horizontal adjustable design, to ensure that the pressure components on average
Temperature CNC, clear and precise
Equipped with digital pressure gauge, preset pressure range
Small size
Using precise PID control, phase angle instead of pulse drive
Small vibration, low noise, voltage fluctuations
Welding head uses molybdenum alloy instead of traditional titanium alloy, rapid heating and cooling, good heat transfer coefficient, wear resistance.

Automated Hot Bar Soldering System for FPC HSC FFC Technical Parameters:

Maximum working area	120 × 120mm
Working pressure	0.45-0.70 Mpa
Power	AC220V + -10% 50HZ, 2VA
Heating settings	three sections
Working environment	10 ~ 60 ℃, 40% ~ 95%
Welding pressure	04.-30N
Temperature setting	RT ~ 500 ℃
Hot pressing time	1 ~ 99.9s
Hot pressing precision	Pitch 0.1mm
Hot head size	According to the product customization
Reference Size	Molybdenum alloy: Max 50 * 3mm/Titanium: Max120 * 8mm
Weld flatness	0.02mm
Welding Pitch	> 0.1mm
Weight	50Kg

Automated Hot Bar Soldering System for FPC HSC FFC,SMTfly-PP3A Application:

Advantages: ultra-fine pitch welding can be achieved; temperature, pressure digital; welding speed 6-8S (excluding artificial take-off time)

Function: Suitable for all kinds of high density TAB, TCP crimp and FPC, FFC and PCB solder crimp.
