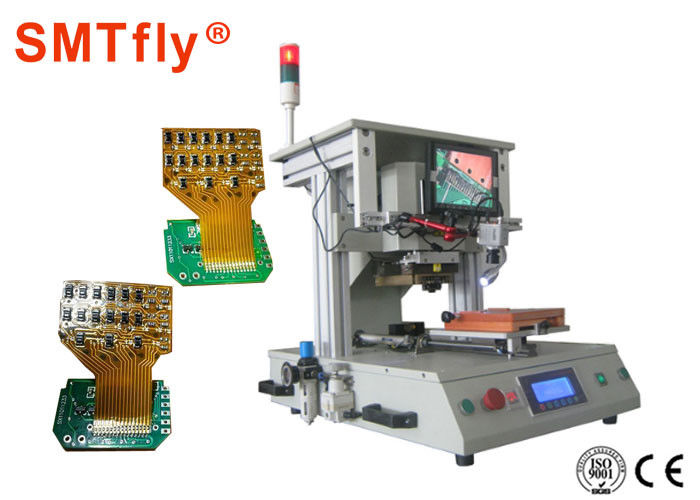

High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections

China High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections supplier
High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections supplier High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections supplier

Large Image :  High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-PP1A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 60Sets/Month
Detailed Product Description
Welding Pressure: 04.-30N Weld Flatness: 0.02mm
Welding Pitch: > 0.1mm Maximum Working Area: 200*260mm
Heating Settings: Three Sections Color: White
High Light:

hot bar soldering equipment

,

pcb bonding machine

Hot Bar Soldering Machine-FPC Precision Hot Bar Bonding Machine,SMTfly-PP1A Specifications:



Working area (mm) 200 × 260
Working pressure (pa) 0.6-0.8
Working environment 10-60 ℃, 40% -95%
Hot pressing time (S) 1 ~ 99.9
Positioning fixture 1
Temperature settings RT ~ 500 ℃ deviation ± 5 ℃
Machine size (mm) 590 × 640 × 620
Hot-pressing accuracy (pa) 0.2
Machine weight (kg) 95
Welding pressure 1 ~ 20Kg



Hot Bar Soldering Machine-FPC Precision Hot Bar Bonding Machine Features:



Depending on the product size, heating rate can be 1-8 file selection

special materials welding head, to ensure that the welding temperature is balanced

equipped with vacuum function, pad adjustment alignment easier

temperature CNC, clear and precise; microcomputer control, precision and stability.

Equipped with digital pressure needle, preset pressure range

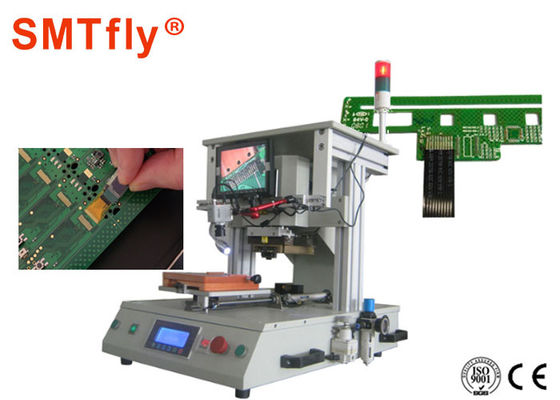

Hot Bar Soldering Machine-FPC Precision Hot Bar Bonding Machine:



High Precision FPC Bonding Machine , Hot Bonding Machine Three Heating Sections
