80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A

China 80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A supplier
80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A supplier 80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A supplier

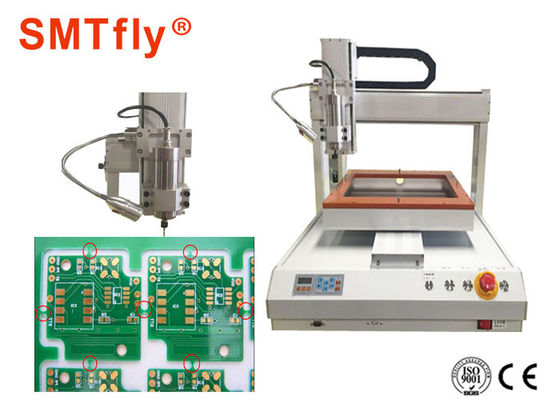

Large Image :  80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-D3A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
PCB Fixation: Standard,Specialization PCB Loading/Unloading: Manual
Vacuum Power: 3.5KW AC 380V Cutting Precision: 0.1mm
Cutting Speed(max.): 80mm/s Precision Of Cutting: 0.01mm
High Light:

pcb shearing machine

,

pcb cnc machine

PCB Separator Machine-Pcb Depanelizer,Routing-Pcba Router for Pcb SMT,SMTfly-D3A Feature:



Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s;



Cut continuously without interruption during loading and unloading;



High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high precision;



Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft;



Use high-quality hardware to ensure high rigidity and high performance.



PCB Separator Machine-Pcb Depanelizer,Routing-Pcba Router for Pcb SMT,Specification:



Motor Drive System

Servo/Stepper Motor

Spindle Speed

50000r/s

Cutting Performance

500mm/s

Drive System Repeat ability

±0.02mm

Cutting Speed

Max 100mm/s(Depends on PCB Material and Cutting Quality)

Resolution

±0.01mm

Configuration

X Y Z 3 Axis

Repeat Ability

<0.1mm

PCB Positioning

Fixture

Load and Unload Way

Manually

PCB thickness

0.4mm-4mm

Working Area

320*320mm(Could be Customized made)

Spindle Motor Speed

50000r/m

Spindle Motor Power

0.5KW

Spindle Motor Cooling

Air-cooled

Machine Dimension

650*550*615mm

Weight

73KG

Security Settings

Emergency Stop Switch

Vacuum Cleaner



Phase

1

Voltage

220V

Output

2.2KW

HZ

50

Current

9.7A

Airfce

263M³/h

Barrel

80

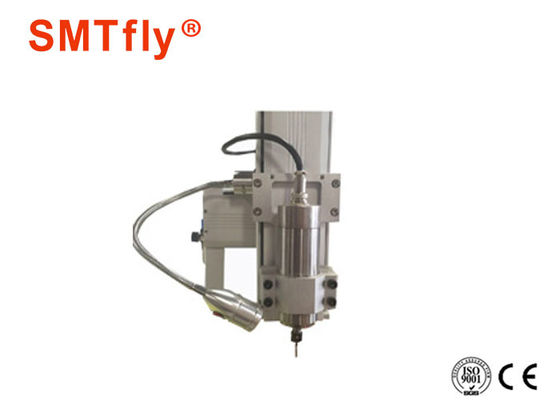

Sample for PCB Separator Machine-Pcb Depanelizer,Routing-Pcba Router for Pcb SMT:



     80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A                80mm/S SMT / PCB Cnc Router Machine , PCB Board Cutting Machine 220V SMTfly-D3A





Additional Information:



Payment Terms

T/T, Paypal

Minimum Order

1 Set

Lead Time / Delivery Time

10 Day(s)

Sample Available

NO

Delivery Details

7-10 days after payment receipt

FOB Port

Shenzhen,

Loading Info

FOB Shenzhen via Sea/Air

Packing Info

plywood case

Target Market(s)

North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
