Heavy Duty V Cut PCB Depanelizer Machine 0.6~3.5mm Cutting Thickness SMTfly-1A

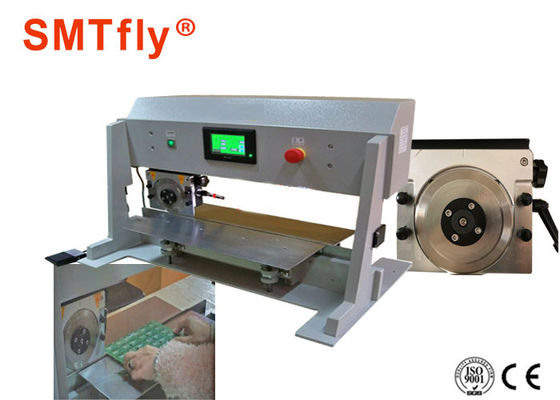

Large Image : Heavy Duty V Cut PCB Depanelizer Machine 0.6~3.5mm Cutting Thickness SMTfly-1A

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	Wooden Box
Delivery Time:	7-15 Working Days after Payment
Supply Ability:	60Sets/Month

Contact Now

Detailed Product Description

Model:	SMTfly-1A460	PCB Cutting Length (mm):	460/600 Customized
Cutting Speed (mm/s):	100/200/300/500	Cutting Thickness (mm):	0.6~3.5
Warranty:	1year	Color:	White
High Light:	v cut pcb depanelizer , pcb v cutter

Separator - PCB Depanel for Pcb Cutting,Depanelize with Pcb Cutter Machines,SMTfly-1A:

Features:

1. Round knife, manually cutting against lower linear knife, for reduced stress;
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable;
8. Optional PCB conveyor belt to remove finished board;
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.

Separator - PCB Depanel for Pcb Cutting,Depanelize with Pcb Cutter Machines Specification:

Model	SMTfly-1A
PCB Cutting Length (mm)	460/600/1000/1500
Cutting Speed (mm/s)	100/200/300/500
Cutting Thickness (mm)	0.6~3.5
Power Supply	110/220 V
Size (mm)	770510450
Weight (Kg)	55
Guarantee (Year)	1
Delivery (Day)	7-15 days
Ability (Set)	1000
Min. Order (Set)	1

Our Advantage :

1. SMTfly-1A Pcb depanelizer original manufacturers, price concessions;
2. Promise day technical support services;
3. Limit the handling of complaints, half an hour back to customers;
4. Depanel Experts, the provision of professional PCB sub-programme;
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.

Technical Characteristics:

1. Structural precision, the load evenly, to eliminate internal stress;
2. Safe, easy to operate;
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board).

Separator - PCB Depanel for Pcb Cutting,Depanelize with Pcb Cutter Machines:

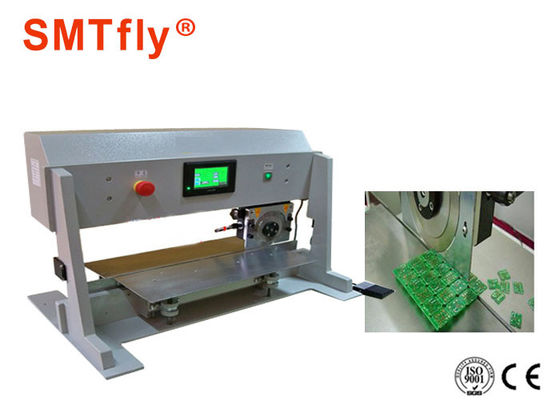

Heavy Duty V Cut PCB Depanelizer Machine 0.6~3.5mm Cutting Thickness SMTfly-1A
