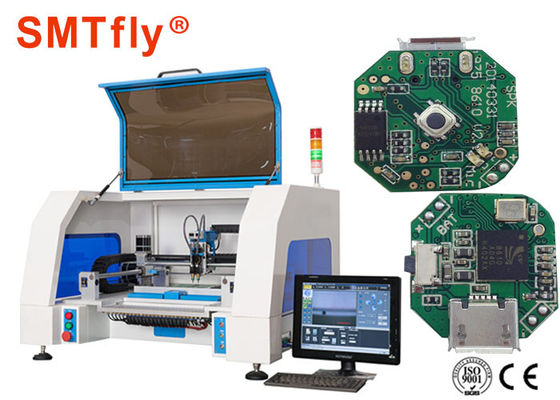

Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board

China Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board supplier
Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board supplier Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board supplier

Large Image :  Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-D2V

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 30Sets/Month
Detailed Product Description
Max Chip Speed: 5600 PCS/H Max PCB Area: 295*420mm
Nozzle Buffer Range: 8mm Power: 300W
Weight: 110Kg Color: White
High Light:

smt pick and place machine

,

pcb component mounting machine

Automatic Vision LED 8mm Pick and Place Machine for PCB,SMTfly-D2V Features:



1. Computer drive drawer integrated, gently pull out, easy to maintain;

2. Mounter for easy assembly, handling is very convenient;

3. HD industrial camera, accurate identification 0404/15 * 15mm chip, covering a wide range of applications;

4. Smart subsidy design, software failure to skip skip continue to mount non-stop, remember and focus on subsidies to fully enhance the efficiency of unattended placement;

5. Component Auxiliary frame design, component programming, correction components more accurate position;

6 components easy to understand and use, permanent free upgrade.



Automatic Vision LED 8mm Pick and Place Machine for PCB Specification:



Model Automatic Pick and Place Machine
Max PCB Area 295*420mm
XY Max range of Movement 530*550mm
Z Max range of Movement 20mm
Max chip Speed 5600 PCS/H
Average chip speed 4500 PCS/H
Positioning accuracy 0.01mm
Nozzle buffer range 8mm
Power 220V,50Hz
Compressed air 0.5-0.7Mpa
Average power 600W
Support for feeding belt feeders, tube feeding, plate IC
Size 1045*850*650mm
Weight 110Kg
Power 300W




Automatic Vision LED 8mm Pick and Place Machine for PCB Application:

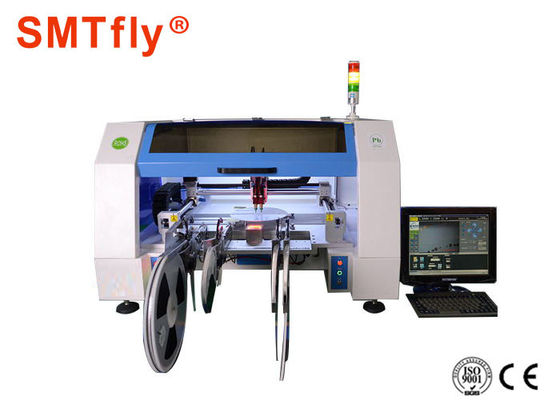

Automatic Vision 8mm LED Pick And Place Machine For PCB Printed Circuit Board
