Automatic Inline PCB Pick And Place Machine SMT Placement Equipment SMTfly-PP6H

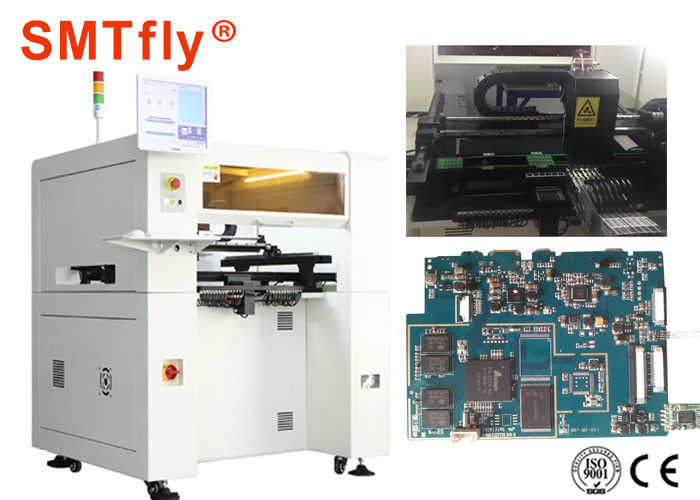

Large Image : Automatic Inline PCB Pick And Place Machine SMT Placement Equipment SMTfly-PP6H

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-PP6H

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	15-30 working days
Supply Ability:	30Sets/Month

Contact Now

Detailed Product Description

Compressed Air:	0.5-0.6Mpa	Positioning Accuracy:	0.01mm
Feeders:	60 (before 24 After 36)	Weight:	450Kg
High Light:	smt pick and place machine , pcb component mounting machine

Compressed Air:

0.5-0.6Mpa

Positioning Accuracy:

0.01mm

Feeders:

60 (before 24 After 36)

Weight:

450Kg

High Light:

smt pick and place machine

pcb component mounting machine

SMT Placement Equipment-Automatic Inline PCB Pick and Place Machine,SMTfly-PP6H Features:

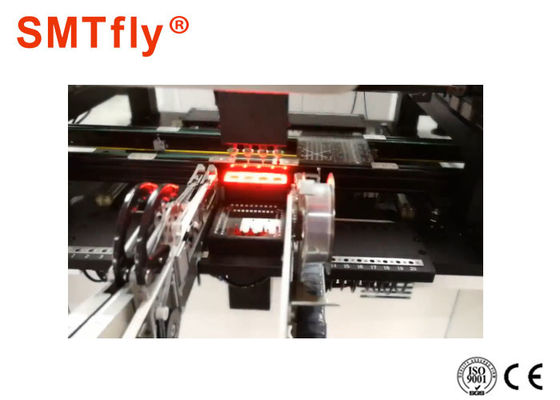

High precision equipment, the machine is equipped with eight cameras, a Mark, a high-precision camera, six high-speed recognition camera can effectively mount 0402-5050 RCA, two transistors, SOP, QFP-256 chip, BGA and other sizes 45mm * 45mm size recognition of components within the placement.

XY drive using imported high precision grinding ball screw + imported heavy linear guide, fast positioning, low noise, high precision.

Stability, using Japan Matsushita servo motor and drive, TBI precision linear guide, Japan vacuum generator, JUKI high-precision nozzle, automatic feeding integrated system high configuration PC industrial computer, effectively protect the machine's long-term operation of the stability.

Three-stage transmission from left to right automatic connection (the first section is responsible for waiting for the board, the second section is responsible for affixed to the board. Out of the machine into the reflow) effectively save the pass board time, higher efficiency.

SMT Placement Equipment-Automatic Inline PCB Pick and Place Machine Specification:

Feeders	60 (before 24 after 36)		Trays		Support 12 groups
Placement head	6(without changing the nozzle)		Average power		600W
Positioning accuracy	0.01mm		Nozzle buffer range		5mm
Power	220V, 50Hz		Compressed air		0.5-0.6Mpa
Drive motor	Matsushita servo motor		Max PCB area		600*430mm
XY Max movement range			700*619mm
Z Axis movement range			20mm
Belt Feeder	8,12,16,24 32mm Feida, shock Feida XY Transmission: Imported TBI high-precision ball screw + imported TBI heavy duty linear guide.
Max chip speed	12000Pcs/h
Into the board way	Three-stage into the board from left to right automatic connection (into the board to be board, board waiting board) automatic PCB transfer positioning
XYZ Drive rail	TBI high precision heavy linear guide
Motion drive system	Panasonic high-speed DSP-driven
Nozzle vacuum source	High-speed vacuum generator with vacuum breaker
Operating system	Based on the Windows operating system, Kay Yang technology company independently developed automatic placement machine operating system.
Component angle	0-360 ° Any angle, synchronous rotation in motion
X/Y Operation Mode	Smart curve acceleration and deceleration linear linkage
Into the board way	Single-stage automatic connection from left to right, automatic PCB transfer positioning.
Visual display	2 Industrial control display ratio 4: 3 resolution of 1024x760
Programming	peer-to-peer programming,visual programming,PCB file coordinate import
Identify the number of cameras	a Mark recognition camera, six simultaneous high-speed recognition camera, a 5 million pixel high-precision recognition camera.
Rail adjustment mode	Manual + automatic
Open cover alarm	Slow down or down
Placement optimization	the program automatically optimize the placement completed to continue production without waiting for a reset.
Mount mode	Manual semi-automatic fully automatic
Operation window	Dual display before and after the operation more user-friendly design.
Automatic connection	Automatically connected to the front and rear band signal equipment.
Shortcut button	Offline reset automatic operation to clear the alarm.
Applicable Mounting Range	Suitable for 0402, 0603, 0805, 1206, LED lamp bead, diode, triode, SOT, QFP, BGA with pin pitch greater than 0.3mm in 45 * 45mm range.
Weight	450Kg	Dimensions		1395 * 1180 * 1376mm
