4 Mounting Heads SMT Pick And Place Machine / Pnp Machine 220V,50Hz SMTfly-PP4H

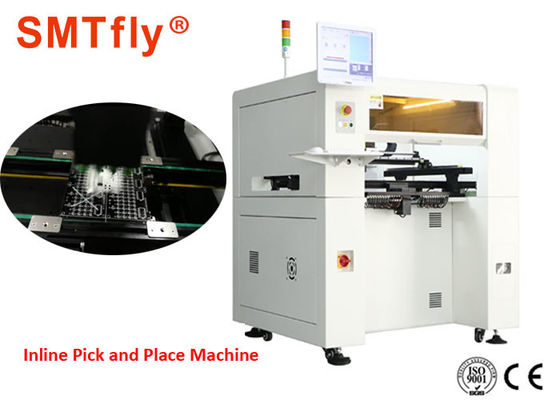

Large Image : 4 Mounting Heads SMT Pick And Place Machine / Pnp Machine 220V,50Hz SMTfly-PP4H

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-PP4H

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	15-30 working days
Supply Ability:	30Sets/Month

Contact Now

Detailed Product Description

XYZ Drive Rail:	TBI High Precision Heavy Linear Guide	Compressed Air:	0.5-0.6Mpa
Positioning Accuracy:	0.01mm	Feeders:	46(Front 20,rear 26)
Max Mounting Speed:	8000CPH	Power Supply:	220V,50Hz
High Light:	smt pick and place machine , pcb component mounting machine

4 Mounting Heads SMT Automatic Pick and Place Machine-SMT P&P Machine,SMTfly-PP4H Specification:

Feeder No.	46(Front 20,rear 26)	Product Weight	450Kgs
Mounting Heads	4(No need to change Nozzle)	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Average Power	600W	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Positioning Accuracy	0.01mm	Motion Drive System	Panasonic High Speed DPS Driver
Nozzle Buffering Range	5.0mm	Operating System	Support Windows XP,Win7 Operating System
Power Supply	220V,50Hz	Component Angle	0~360°,Synchronized rotation in motion
Compressed Air	0.5-0.6Mpa	X/Y Running Mode	Intelligent Curve Acceleration and Deceleration Linear Linkage
Driving Motor	Panasonic Servo Motor	X/Y Running Mode
Recognition Method’	4 Heads Recognize Synchronously	Placement Mode	Manual,Semi-automatic,Full-automatic
Nozzle Vacuum Source	High-speed on-off vacuum generator with vacuum damage	Alarm when open the cover	Reducing speed or out of service
XY Max Movement Range	556*680mm	Rail Guide Adjusting Method	Manual+Automatic
Max Circuit Board Area	480*300mm	Board Input Method	Automatically connect loader and position PCB transmission
Z Axis Max Movement Range	20mm	Visual Display	15”industrial control display ratio 4:3,resolution 1024*768
Belt Type Feeder	8/12/16/24mm feeders stick feeder	Programming Mode	Point to Point,Visual Programming,PCB file coordinates inputting,etc
Max Mounting Speed	8000CPH	Programming Mode
Average Mounting Speed	6000CPH(Visual)	Recognition Camera No	1 Mark recognition camera,4 high speed recognition camera,1 high-precision recognition camera
Dimensions	109511651400mm	Recognition Camera No

4 Mounting Heads SMT Automatic Pick and Place Machine-SMT P&P Machine Features:

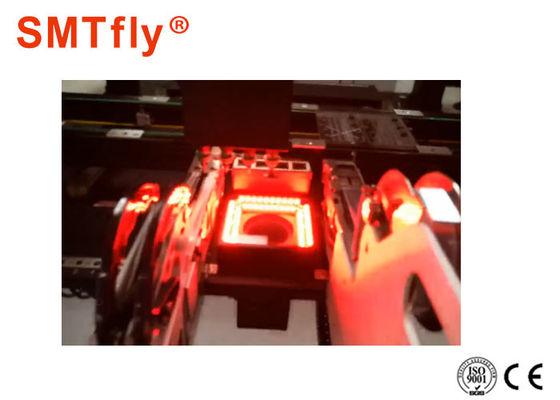

High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.

Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.

Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

High degree of automation: Equipped with precise transmission guide, automatically input boards and output boards connecting to inspection conveyor after mounting. No need manpower, greatly improving efficiency.

SMT Automatic Pick and Place Machine-SMT P&P Machine:
