480*300mm PCB Pick And Place Machine 0.01mm Positioning Accuracy 8000CPH Speed

Large Image : 480*300mm PCB Pick And Place Machine 0.01mm Positioning Accuracy 8000CPH Speed

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-PP4H

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	15-30 working days
Supply Ability:	30Sets/Month

Contact Now

Detailed Product Description

Compressed Air:	0.5-0.6Mpa	Positioning Accuracy:	0.01mm
Feeders:	46(Front 20,rear 26)	Max Mounting Speed:	8000CPH
Power Supply:	220V,50Hz	Z Axis Max Movement Range:	20mm
High Light:	smt placement equipment , pcb component mounting machine

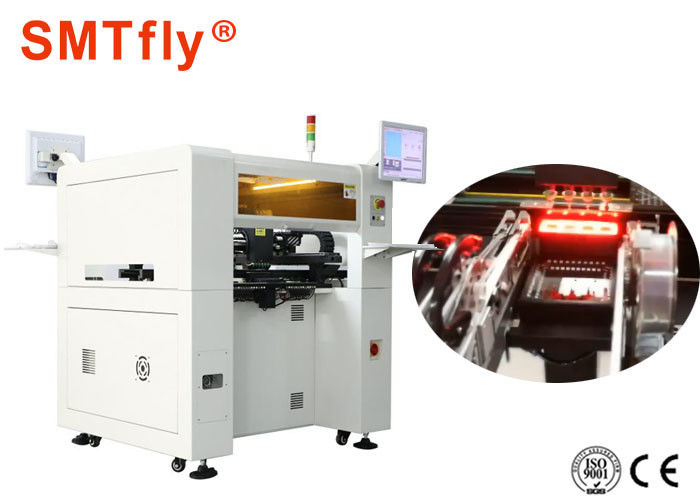

Printed Circuit Board PCB Pick and Place Machine,SMTfly-PP4H Features:

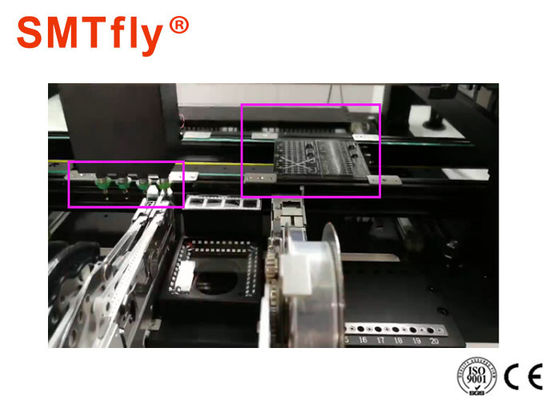

High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.

Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.

Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

High degree of automation: Equipped with precise transmission guide, automatically input boards and output boards connecting to inspection conveyor after mounting. No need manpower, greatly improving efficiency.

Printed Circuit Board PCB Pick and Place Machine,SMTfly-PP4H Specification:

Feeder No.	46(Front 20,rear 26)	Product Weight	450Kgs
Mounting Heads	4(No need to change Nozzle)	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Average Power	600W	XYZ Drive Guide Rail	TBI High-precision heavy-duty straight-line guide rail
Positioning Accuracy	0.01mm	Motion Drive System	Panasonic High Speed DPS Driver
Nozzle Buffering Range	5.0mm	Operating System	Support Windows XP,Win7 Operating System
Power Supply	220V,50Hz	Component Angle	0~360°,Synchronized rotation in motion
Compressed Air	0.5-0.6Mpa	X/Y Running Mode	Intelligent Curve Acceleration and Deceleration Linear Linkage
Driving Motor	Panasonic Servo Motor	X/Y Running Mode
Recognition Method’	4 Heads Recognize Synchronously	Placement Mode	Manual,Semi-automatic,Full-automatic
Nozzle Vacuum Source	High-speed on-off vacuum generator with vacuum damage	Alarm when open the cover	Reducing speed or out of service
XY Max Movement Range	556*680mm	Rail Guide Adjusting Method	Manual+Automatic
Max Circuit Board Area	480*300mm	Board Input Method	Automatically connect loader and position PCB transmission
Z Axis Max Movement Range	20mm	Visual Display	15”industrial control display ratio 4:3,resolution 1024*768
Belt Type Feeder	8/12/16/24mm feeders stick feeder	Programming Mode	Point to Point,Visual Programming,PCB file coordinates inputting,etc
Max Mounting Speed	8000CPH	Programming Mode
Average Mounting Speed	6000CPH(Visual)	Recognition Camera No	1 Mark recognition camera,4 high speed recognition camera,1 high-precision recognition camera
Dimensions	109511651400mm	Recognition Camera No
