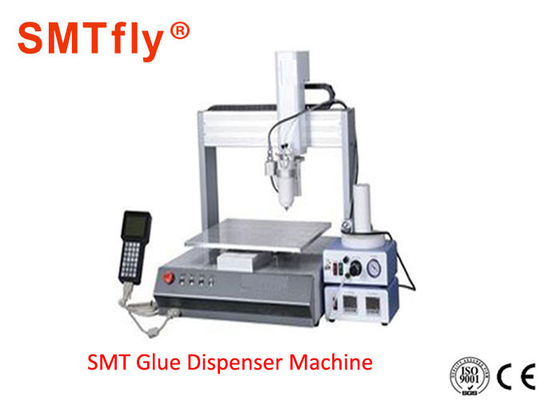

Multi - Axis SMT Glue Dispenser Machine Robotic Adhesive Dispensing Systems SMTfly-7000

Robotic Dispensing Systems,Automated Dispensing Systems,SMTfly-7000 Description:

The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.

SMTfly Multi-axis system and on line dispensing arm which provides a highly reliable operation and good repeat ability.

Multi-axis system which can simple programming for point, stripes, arc, composite curve, and different

patterns.

This machine can set up quickly and easy to operate, can save more more time for other projects so

that help to increase production.

Robotic Dispensing Systems,Automated Dispensing Systems,SMTfly-7000 Features:

Easy to program

Reduce the process time so that to help increase production

Fully integrated positioning and dispensing function

The perfect integration of dispensing and positioning function.

Robotic Dispensing Systems,Automated Dispensing Systems Application to:

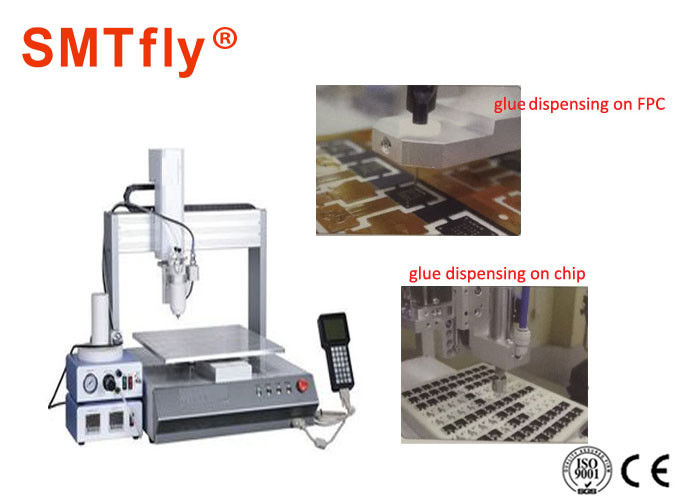

Filling, Dotting, Forming, Drawing, Under filling, Coating, Doming, etc.

Apply to:

Adhesive,Coating materials,Acrylic resin adhesive,Grease,Oil paint,Reagent,Sealant,Solder

paste, etc.

Robotic Dispensing Systems,Automated Dispensing SystemsTechnical parameters:

Robotic Dispensing Systems,Automated Dispensing Systems Instructions:

1, Keyboard control in Chinese and English version, easy operation and maintenance.

2, Major functions: Drawing point, line, surface ,arc, circle,ellipse,irregular curve continuous complement and triaxial linkage.

3, Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4, According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

5, This machine can set up quickly and easy to operate, can save more time and increase production.

6, The importing function supports AUTO CAD pattern, more accurate and reliable.

7, Hand held LCD teach pendant,easy to program and control.

8, High degree of automation, easy operation which the staff can master several equipments, Reduce the labor intensity of works ,and leads to increased efficiency and develop a competitive advantage of company

Auto Glue Dispenser/dispensing Machine supplier applicable objects:

Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and so on

Installation:

The automatic dispenser machine can satisfy various requirements for dispensing, only need to choose different fixtures and math with dispensing systems.

The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model.

1. The standard accessories include the 30CC needle cylinder clamps, and they can be applied to 30CC or 55CC needle cylinder. If you want to use other needle cylinder, then you have to purchase other needle cylinder clamps appropriate.

2. Fix the needle cylinder clamps onto the Z axle. Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side. The clamp has a couple of holes to select, according to the specific requirements .

3. Connect the signal port(three holes) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line. The signal port in the dispenser machine is the same one that connecting with the foot-plate. Thus a problem may appear that the port can not be shared, if your dispenser machine is not purchased along with the matching machine. In such case, please contact the Extruder supplier for joint exchanging.

4. Connect the compressed air source to the dispenser controller, put the needle cylinder collect onto the needle cylinder and tighten it, and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder.( Please don’t over tighten, in case of deformation. And once it deforms, the piston then cannot fit with the inner side of the needle cylinder, and cause air leakage.)

5. Connect the hand held programmer to the machine.

6. Connect the dispenser machine and the controller to 220V power source.

7. Do make sure the pressure pipe of the needle cylinder collect and the power source will not influence the motion of each axles and working plate.

8. Congratulations for completing primary set of the dispenser machine, please learn teaching mode operation according to the following chapters.
