FPC & LED LCD SMT Glue Dispenser Machine 10kg Maximum Load Y Axis SMTfly-322

China FPC & LED LCD SMT Glue Dispenser Machine 10kg Maximum Load Y Axis SMTfly-322 supplier
FPC & LED LCD SMT Glue Dispenser Machine 10kg Maximum Load Y Axis SMTfly-322 supplier FPC & LED LCD SMT Glue Dispenser Machine 10kg Maximum Load Y Axis SMTfly-322 supplier

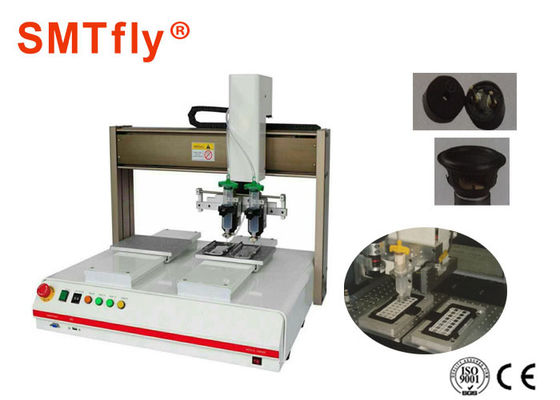

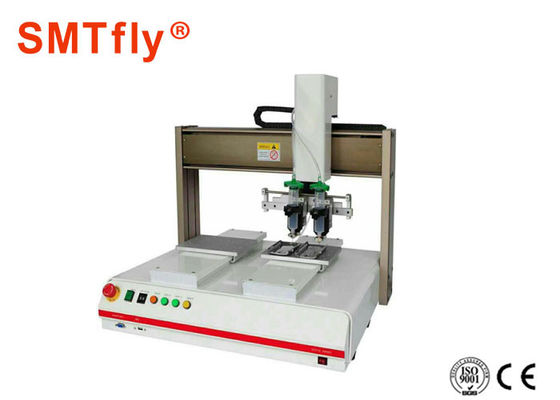

Large Image :  FPC & LED LCD SMT Glue Dispenser Machine 10kg Maximum Load Y Axis SMTfly-322

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-322

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Detailed Product Description
Maximum Load Y-Axis: 10kg Display Mode: Teaching Box LCD
Input Power: AC110/220V Total Power: Total Power
Weight: 60kg Color: White
High Light:

automatic glue dispensing machine

,

glue coating machine

FPC & LED LCD SMTGlue Dispensing Machine-SMT Glue Dispenser,SMTfly-322 Features:



1. Chinese / English operation interface.

2. double table work in turn, one equivalent to two work efficiency, efficient production;

3. single machine, easy to install, easy to operate, convenient, high-speed accurate;

4., humanized teaching box program setting; simple to complete various paths of matrix replication, offset modification, school settings, at the same time with the machine between the program transfer and other super functions.

5. dispensing program files can be uploaded / downloaded via U disk, which is convenient for data management and storage;

6. professional 3D arc interpolation control system, applies to any non planar 3D dispensing path;

7. common UV glue, red glue, silver glue, A glue, B glue, COB black conductive adhesive, aluminum paste, glue dispensing, can be used in the device.



FPC & LED LCD SMTGlue Dispensing Machine-SMT Glue Dispenser,SMTfly-322 Specification:



Processing range X/Y1/Y2/Z (mm): 500/200/200/100
Maximum load Y-Axis/ Z-Axis: 10kg / 4.5kg
Moving speed X&Y / Z (MMC): 0.1 to 800 / 350
Repeat ability accuracy: ±0.02 mm
Program record mode: 100 groups, each group 4000 points (can support U disk COPY)
Display mode: teaching box LCD
Motor system: Japan micro stepping motor precision
Operation mode: point to point / line segment
Transmission mode: Synchronous belt + precision linear guide rail
Movement interpolation function: 3 axis (3D stereo space, any route can)
Edit mode: instructional box / PC I/0 signal I/O8 Inputs / 8 Outputs
External control interface: RS232
Input power: AC110/220V (internal switch conversion) 450W
Working environment temperature: 5~40 DEG C
Working environment humidity: 20 ~ 90%, no condensation
Overall dimensions (W * D * Hmm): 560 * 500 * 595
Body weight: 60KG
