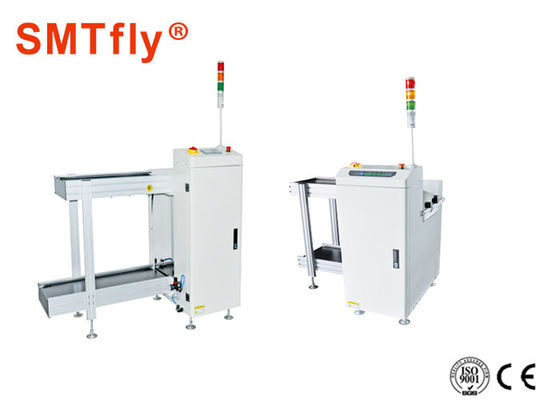

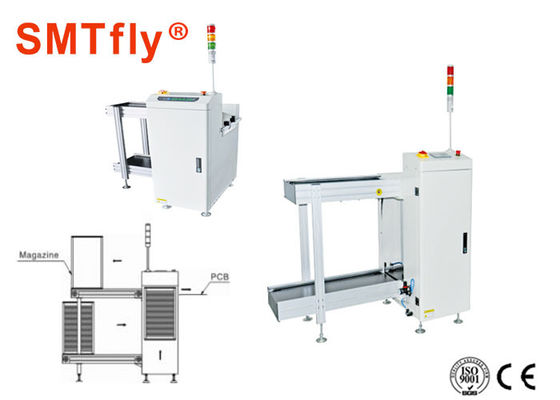

Integrated Control System PCB Loader Unloader Machine For SMT Production Line
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| PCB Loading Time: | 6s | Magazine Size (L×W×H): | 355×320×563mm |
|---|---|---|---|
| PCB Thickness: | Min 0.6mm | Power Supply: | 100-230V AC (customized) |
| Weight: | 100kg | Color: | White |
| High Light: | pcb loader machine,pcb handling equipment |
||
PCB Loader Unloader-According to PCB Size Customized PCB Automatic Loader,SMTfly-BL250 Features:
Stable and reliable integrated control system;
Easy to operate touch LED buttons or touch screen control interface;
The pneumatic clamps of top and bottom three point provided for the magazine alignment;
Effective thrust design can ensure the PCB is unbroken,
Machine always fault monitoring;
Solid and stable design;
SMEMA port is compatible.
PCB Loader Unloader-According to PCB Size Customized PCB Automatic Loader Specification Parameter:
| Model | SMTfly-BL250 | SMTfly-BL330 | SMTfly-BL390 | SMTfly-BL460 |
| PCB Size(L*W-L*W) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Machine Size(L*W*H) | 1370*750*1200 | 1550*830*1200 | 1750*920*1200 | 1750*990*1200 |
| Magazine Size(L*W*H) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Weight | 110Kg | 135Kg | 155Kg | 175Kg |
PCB Loader Unloader-According to PCB Size Customized PCB Automatic Loader Technique Parameter:
| PCB board time | 6Sec |
| Magazine change over time | 30Sec |
| Power supply | 100-230V AC power(customized)single phase max 300VA |
| Air pressure | 4-6bar,Max 10L/Min |
| Transfer height | 920±20mm(customized) |
| Transfer direction | Left - right or right-left |
| PCB thickness | Min 0.4mm |
| Magazine number | Upper conveyor: 1, lower conveyor: 2(or customized) |
| Step pitches select | 1-4(10mm step pitches) |
Application:
This equipment is used for operation of PCB loading in the line.
