Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD

China Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD supplier
Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD supplier Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD supplier

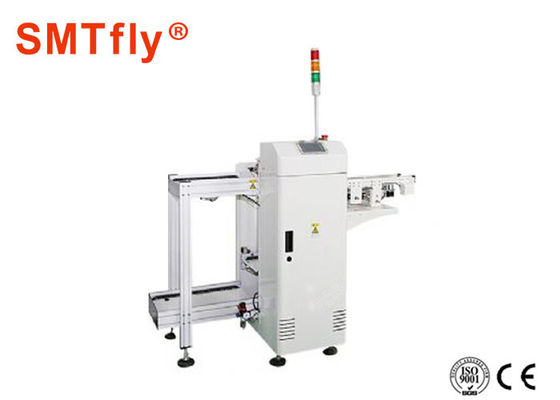

Large Image :  Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-250ULD

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Plywood case
Delivery Time: 7-15 working days
Supply Ability: 100Sets
Detailed Product Description
PCB Loading Time: 6s Magazine Size (L×W×H): 355×320×565mm
PCB Thickness: Min 0.4mm Power Supply: 100-230V AC (customized)
Single Phase: Max 300VA Color: White
High Light:

pcb magazine loader

,

pcb loader machine

Customized Transfer Height PCB Auto Unloader-PCB Loader Unloader,SMTfly-250ULD Features:



  • PLC control system;
  • LED TFT touch screen control panel;
  • Four step pitches selection(10,20,30,40mm);
  • 2 magazines loading capability;
  • With the special structure of anti clamping plate and foolproof;
  • Direction from left to right or right to left(option);
  • Standard SMEMA.



Customized Transfer Height PCB Auto Unloader-PCB Loader Unloader,SMTfly-250ULD Specification Parameter:



Model SMTfly-250ULD SMTfly-330ULD SMTfly-390ULD SMTfly-460ULD
PCB Size(L*W-L*W) 50*50~350*250 50*50~455*330 50*50~530*390 50*50~530*460
Size(L*W*H) 1700*780*1200 1900*860*1200 2200*920*1200 2200*1120*1200
Magazine Size(L*W*H) 355*320*565 460*400*565 535*460*565 535*530*565
Weight 160Kg 200Kg 240Kg 260Kg



Customized Transfer Height PCB Auto Unloader-PCB Loader Unloader Technique Parameter:



Board time 6Sec
Magazine change time 20Sec
Power 100-230V AC power(customized)
Single phase Max 300VA
Pressure 4-6bar,Max 10L/Min
Transfer height 920±20mm(customized)
Transfer direction Left - right or right-left
PCB Thickness Min 0.4mm
Magazine Upper conveyor: 1, lower conveyor: 1
Step selection 1-4(10mm step selection)



Customized Transfer Height PCB Auto Unloader-PCB Loader Unloader with CE:

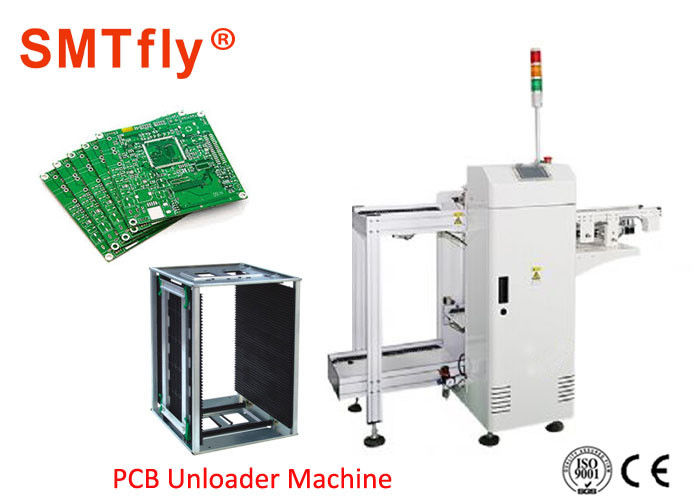

Automatic PCB Loader Unloader Machine Customized Transfer Height SMTfly-250ULD
