Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250

China Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250 supplier
Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250 supplier Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250 supplier

Large Image :  Stable Design PCB Magazine Loader , PCB Loader Machine 100-230V SMTfly-UL250

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-UL250

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Plywood case
Delivery Time: 7-15 working days
Supply Ability: 100Sets
Detailed Product Description
Board Time: 6s Transfer Height: 900±20mm(or Customized)
Magazine Size(L*W*H): 355*320*565 Pressure: 4-6bar,Max 10L/Min
Weight: 140Kg Color: White
High Light:

pcb magazine loader

,

pcb handling equipment

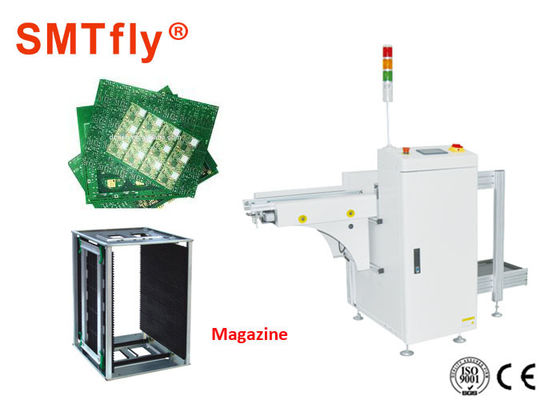

PCB Loader Unloader for Collect PCBs into Magazine at the end of SMT Line,SMTfly-UL250

Technique Parameter:



PCB board time 6Sec
Magazine change over time 30Sec
Power supply 100-230V AC power(customized)
Single phase Max 300VA
Air pressure 4-6bar,Max 10L/Min
Transfer height 920±20mm(customized)
Transfer direction Left - right or right-left
PCB thickness Min 0.6mm
Magazine number Upper conveyor: 1, lower conveyor: 1(or customized)
Step pitches select 1-4(10mm step pitches)

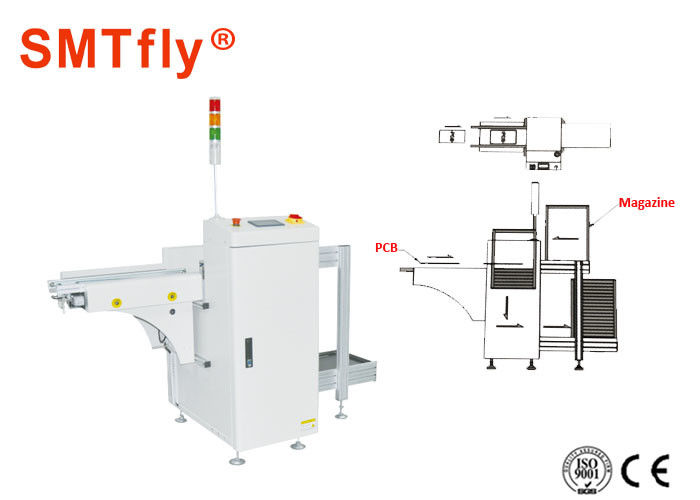

PCB Loader Unloader for Collect PCBs into Magazine at the end of SMT Line

  1. Stable and reliable integrated control system;
  2. Easy to operate touch LED buttons or touch screen control interface;
  3. The pneumatic clamps of top and bottom three point provided for the magazine alignment;
  4. Electric pushing board design can ensure the PCB is unbroken;
  5. Machine always fault monitoring;
  6. Solid and stable design;
  7. SMEMA port is compatible.



PCB Loader Unloader for Collect PCBs into Magazine at the end of SMT LineSpecification Parameter:



Model SMTfly-UL250 SMTfly-UL330 SMTfly-UL390 SMTfly-UL460
PCB Size(L*W-L*W) 50*50~350*250 50*50~455*330 50*50~530*390 50*50~530*460
Machine Size(L*W*H) 1700*750*1200 1950*830*1200 2210*920*1200 2210*990*1200
Magazine Size(L*W*H) 355*320*563 460*400*563 535*460*570 535*530*570
Weight 130Kg 150Kg 170Kg 185Kg
