808±8nm Laser Spot Welding Machine , Laser Soldering Equipment SMTfly-30TS

China 808±8nm Laser Spot Welding Machine , Laser Soldering Equipment SMTfly-30TS supplier
808±8nm Laser Spot Welding Machine , Laser Soldering Equipment SMTfly-30TS supplier 808±8nm Laser Spot Welding Machine , Laser Soldering Equipment SMTfly-30TS supplier

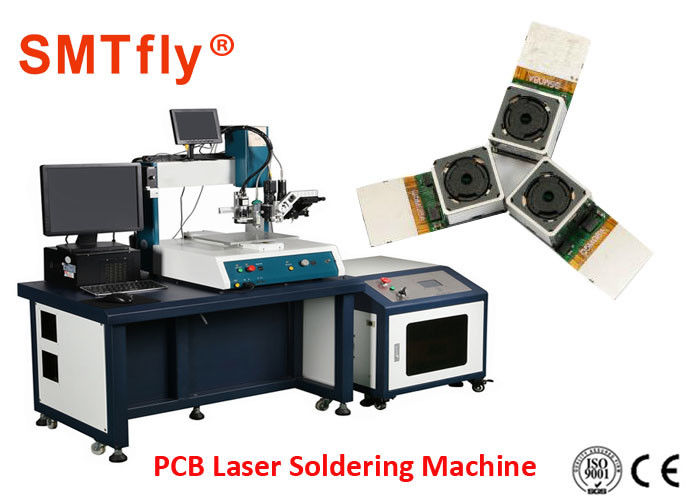

Large Image :  808±8nm Laser Spot Welding Machine , Laser Soldering Equipment SMTfly-30TS

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-30TS

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 50Sets/Quarter
Detailed Product Description
Laser Wave Length: 808±8nm Relative Humidity: ≤80%RH
Air Dust: ≤0.01g/m3 Environment Temperature: 10-35℃
Numerical Aperture: 0.22 Fiber Connector: SMA905
High Light:

laser soldering equipment

,

laser spot welding machine

  Laser Spot Welding Machine Manufacturer,Laser Soldering Machine,SMTfly-30TS Features:



1. The professionally designed soldering system is compatible with the use of visual positioning CCDs. It also integrates solder paste and laser functions to realize the integration of laser and solder paste.

2. visual positioning CCD professional algorithm, complete accurate positioning.

3. the device uses touch screen control, adjustable waveform, adapt to precision soldering.

4. The laser power supply adopts current feedback control to stably output laser energy

5. The laser is imported from the United States and its quality is guaranteed.

6. The optical fiber output is single-mode fiber and the beam quality is good.

7. the device with 20 times CCD display, a clear monitoring of the welding process.

8. Our company has produced a fully automatic welding machine. The loading and unloading are automated and unmanned.

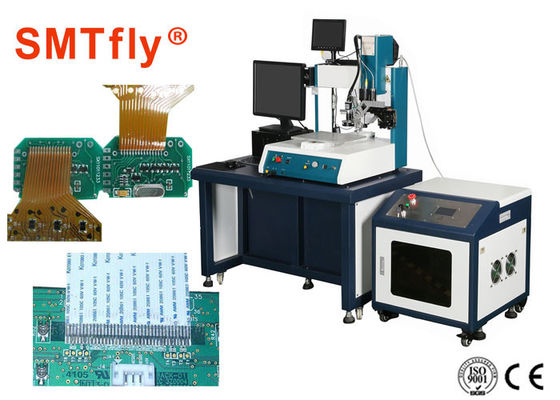

PCB Laser Soldering Machine-Circuit Board Soldering of Special Components Application:


High-density interconnect chips, ICs, chip components, connectors, headphone plugs, cell phone speakers, energy-saving lamps, FPC flexible circuit boards, cell phone cameras, circuit board soldering of special components.


PCB Laser Soldering Machine-Circuit Board Soldering of Special ComponentsSpecification:



Model SMTfly-30TS
Laser wave length 808±8nm
Fiber Optic Terminal Output Power 30±6W
Fiber Diameter 400um/600um
Fiber Connector SMA905
Numerical Aperture 0.22
Rated Power 500VA
Indicating Laser 635±6nm,5mw
AC Power AC 220V±10% 50HZ,15A
Environment temperature 10-35℃
Relative humidity ≤80%RH
Atmospheric pressure ≤86-106Kpa
Environmental cleanliness Air dust≤0.01g/m3



About us:



Our extensive experience in systems introductions has let us establish application knowledge for laser soldering. We guarantee that customers can adopt these systems with confidence.

However, laser soldering is absolutely not just a replacement for contact soldering. It is important to distinguish the strong points of each and match them to the application.



SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipments, it provides high-end PCB manufacturing machines for industrial factories in this word.
SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D , production , sales and service in one line.
SMTfly head office is located at Ganghuaxing industrial park , Fuyong Town, Shenzhen.
Adhere to the "customer as the center" , meet the needs of the electronic industry customers by technological innovation & management optimization.
SMTfly help you soar!
