0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S

China 0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S supplier
0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S supplier 0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S supplier

Large Image :  0.3mm Thickness PCB Inspection Machine , Solder Paste Inspection Equipment 700mm/S

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE
Model Number: SMTfly-V850

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 20Sets/Month
Detailed Product Description
SPC: Offline SPC Support SPC Report: Anytime Report
PCB Thickness: 0.3mm~4.5mm Power: AC220V±10%, 50/60Hz,1200W
Travel Speed: 700mm/s Repeat Ability: <1μm@3sigma
High Light:

pcb stencil printer

,

solder paste stencil printer

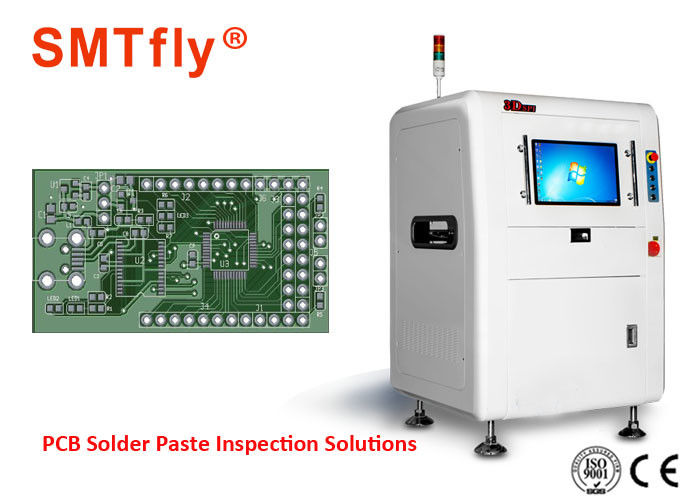

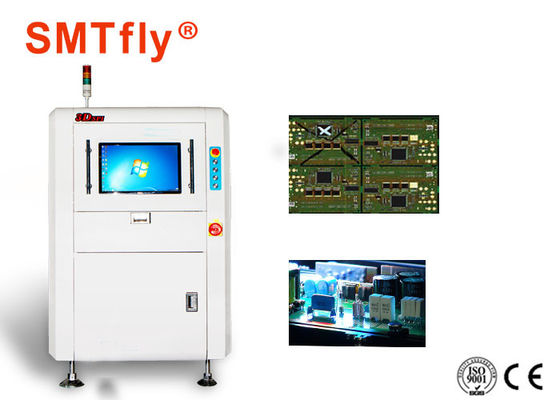

0.3mm Thickness PCB Inspecting-Solder Paste Inspection Machine,SMTfly-V850 Specification:



Category Item Specifications

Inspection System

Camera Full digital high speed CCD camera, 5 million pixels
  Light source Ring LED light source
  FOV 32mm*32mm(20μm)
  Processing time per picture <0.6s
  Test content Paste printing / red plastic printing: volume, area, height, shape, offset, continuous tin, overflow glue
  Defect Types Yes, Offset, Multi-Tin, Less Tin, Continuous Tin, Tip, Collapse, Alien, Gold finger, Insufficient Height, Height Exceeded, Overfill, Insufficient, etc.
  Paste height range 10~400um
  Paste size range 0.15mm×0.15mm~10mm×10mm
  Height detection accuracy 1μm (based on actual solder paste and 3D correction block)
  Repeat ability (volume/area/height) <1μm@3sigma
  Repeat ability & Reproduce ability <10%

Software System

Operating System Microsoft Windows XP Professional, Windows 7


Identification System

Features 3D bidirectional raster projection head (single head optional), no shadow 3D detection
    Operational interface Graphical programming, easy operation, switchable English, traditional and simplified systems
    Interface display 2D/3D color map
    MARK can select 2 common Mark points, multi-Mark function can be selected in the puzzle, and Bad Mark function is supported
  Programming Support Gerber, CAD import, support offline programming and manual programming
  SPC Offline SPC Support
    SPC Report Anytime Report
    Histogram/control chart Volume,area, height, offset
    Exportable Content

Reports (Excel), Pictures (jpg, bmp)





0.3mm Thickness PCB Inspecting-Solder Paste Inspection Machine Features:



High-precision control platform



The motion platform adopts servo motor and high-precision ball screw structure, and the motion is high-speed, smooth, vibration-free and noise-free.

High-precision grating scale with full closed loop feedback system.



High-definition, high-speed camera



Ultra-high frame rate industrial cameras with industrial lenses for extremely high shooting speeds; self-developed

RGB three-color light source, can realize 3D, 2D true color map, display effect is extremely close to real object;

Utilizing GPU massively parallel technology greatly improves the speed of operation and detection.



Ultra High Frame Rate Industrial Camera with Industrial Lens



Comprehensive and detailed SPC analysis system



SPC is the use of statistical methods for the process of the various stages of process control, through the analysis of test information feedback, to promote the improvement of the process before the process, in order to achieve the prevention of bad.

The operator can intuitively view the comprehensive statistics of test information through a pie chart or a bar chart.

Statistical information can be output in formats such as Html, Excel, or Image.



True color three-dimensional image



Phase Modulation Profilometry (PMP) is based on sinusoidal motion projection of structured gratings.

Discrete phase shift to obtain multiple illuminated object light field images, and then calculated according to multi-step phase shift method.

Out of the phase distribution, the final use of triangulation and other methods to obtain a high-precision object shape.

Contour and volume measurements. True color three-dimensional image display.



Red glue detection



This device, in addition to supporting common 3D solder paste inspection, can also detect red rubber process at the same time, supporting missed printing, overflowing plastics, multiple adhesives, and low adhesives, etc., and displaying full-color defective image. Positioning.



Bare-board learning programming



No Gerber and CAD files are required, as long as a bare board is provided, automatic learning programming can be realized. The software automatically extracts the detection frame data, and the user edits it appropriately, and sets detection parameters and allowable values.



Automatic plate bend compensation



The three-dimensional plate bending compensation technique is used to perform surface fitting on the discrete reference points in the FOV to perform real-time compensation during the detection process. There is no need to move the Z axis and the detection speed is faster.



Camera barcode recognition



The camera can automatically identify the bar code (one-dimensional/two-dimensional) of the inspection surface on the PCB to facilitate traceability of product quality.
