7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A

China 7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A supplier
7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A supplier 7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A supplier

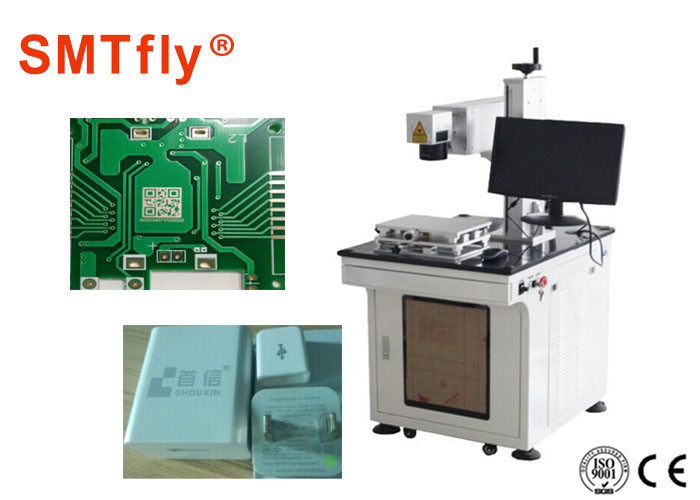

Large Image :  7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-DB3A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1-Set
Packaging Details: plywood
Delivery Time: 15 working days
Supply Ability: 50Sets/Month
Detailed Product Description
Laser Power: 30W Laser Wavelength: 355nm
Minimum Line Width: 0.012mm Operating System: EZCAD
Repeated Precision: 0.003mm Cooling System: Water Cooling
High Light:

co2 laser marking machine

,

fiber laser marking machine



PCB Laser Marking Machine with UV Laser Wave Length 355nm,SMTfly-DB3A Specification:

 7000mm/S PCB Laser Marking Machine With EZCAD Operating System SMTfly-DB3A

Laser power 30W
Laser wavelength 355nm
Repetition frequency 20‐100KHz
Minimum line width 0.012mm
Marking depth <0.5mm
Minimum character 0.15mm
Repeated precision 0.001mm
Marking speed 7000mm/s
Operating system EZCAD

Pulse Width ≤4ns
Cooling system Water cooling
Marking scope 110 × 110mm
Product area 550mm × 960mm × 850mm



PCB Laser Marking Machine with UV Laser Wave Length 355nm Description:



Ultraviolet (UV) laser is a kind of cold light, mainly used in super precise marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro punching, glass high‐speed dividing, silicon wafer complex graphics cutting, etc.



Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.



PCB Laser Marking Machine with UV Laser Wave Length 355nm Features:

  1. High quality light beam, small focal point, ultra‐ fine marking.
  2. High speed and high efficiency.
  3. Widely used, because most materials could absorb UV laser.
  4. Low energy consumption, environmentally friendly, no consumables.
  5. Little affect area, no heat effect, without material burned problem.

PCB Laser Marking Machine with UV Laser Wave Length 355nm Application:



1. Mark on coated silicon solar panel, Remove the surface film on object;

2. Mark on mobile protection film, LCD screen , optic device, automobile glass etc: 3.Also suitable for most of metal and non‐metal material marking or coated surface marking, ie, hardware, ceramic, glasses, clock ,PC, electronic device, PCB and control panel, nameplate and plastic material etc.
