PCB De-panel Separator V Cut PCB Depaneling Machine for “#” Shape Panels

Large Image : PCB De-panel Separator V Cut PCB Depaneling Machine for “#” Shape Panels

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-5

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	1USD/Set
Packaging Details:	plywood case
Delivery Time:	payment after 7-15 working days
Supply Ability:	10/Sets/Month

Contact Now

Detailed Product Description

Blade Type:	Circular & Linear Blades	Circular Blade:	￠80 ￠60mm
Linear Blade:	356×43.5×6mm	PCB Width:	300mm(could Be Customized)
Driven Mode:	Stepping / Servo Motor(optional)	V-cut Angel:	>40°
High Light:	pcb v cutter , pcb v cut machine

PCB De-panel Separator-V Cut PCB Depaneling Machine for “#” Shape Panels at one time,SMTfly-5 Features:

Workable for “#”shape depaneling.
Horizontal and vertical depaneling is optional.
Blade set can be quickly changed.
Could connect PCB loader and PCB unloader to realize fully automated production to save labor.
Simple operation, workers can operate it after training.
Unique new blade design, lifetime should be increased by 1.5-2 times.
Safety: Sensor is used to ensure safe production.

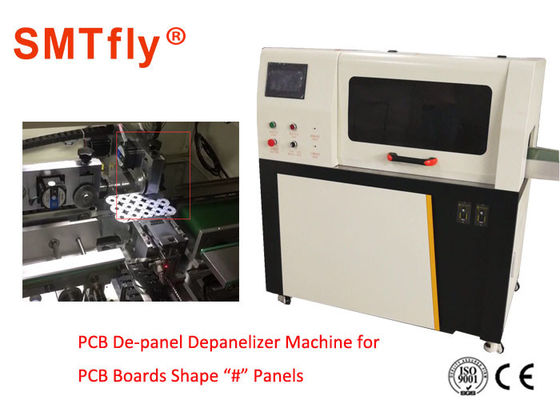

PCB De-panel Separator-V Cut PCB Depaneling Machine for “#” Shape Panels

Operation Process

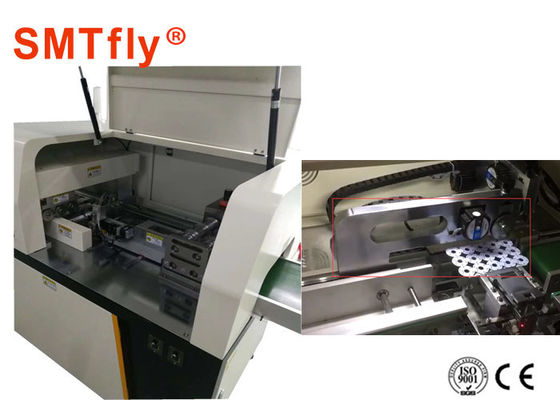

PCB De-panel Separator V Cut PCB Depaneling Machine for “#” Shape Panels

PCB De-panel Separator-V Cut PCB Depaneling Machine for “#” Shape Panels Description:

This is a double directions depaneling with horizontal and vertical boards to realize inline depaneling for “#” shape panels at one time.High automation, connect PCB loader and unloader, can be achieved without human, save labor.Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs.One direction of depaneling is also workable, could set horizontal and vertical depaneling by touch screen, more intelligent.Dust cleaner is optional.

PCB De-panel Separator-V Cut PCB Depaneling Machine for “#” Shape Panels Specification:

Blade dimension	Circular blade:￠80 ￠60mm Linear blade: 356×43.5×6mm
PCB width	300mm(could be customized)
Driven mode	Stepping / Servo motor(optional)
V-cut angel	>40°
Cutting speed	300-500/s
Blade material	High speed steel
Air pressure	0.5-0.8Mpa
Voltage	220/110V
Dimension	1250(1560)mm×800mm×1295mm
Packaging weight	300kgs
