Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5

China Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5 supplier
Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5 supplier Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5 supplier

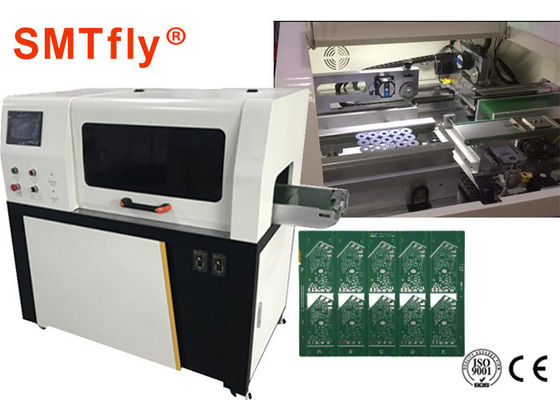

Large Image :  Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-5

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: 1USD/Set
Packaging Details: plywood case
Delivery Time: payment after 7-15 working days
Supply Ability: 10/Sets/Month
Detailed Product Description
Circular Blade: ¢80 ¢60mm Linear Blade: 356×43.5×6mm
Driven Mode: Stepping / Servo Motor(optional) V-cut Angel: >40°
Voltage: 220/110V Weight: 300kgs
Air Pressure: 0.5-0.8Mpa Workable: “#”shape Depaneling
High Light:

pcb v cutter

,

pcb v cut machine

Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine,SMTfly-5​

Operation Process

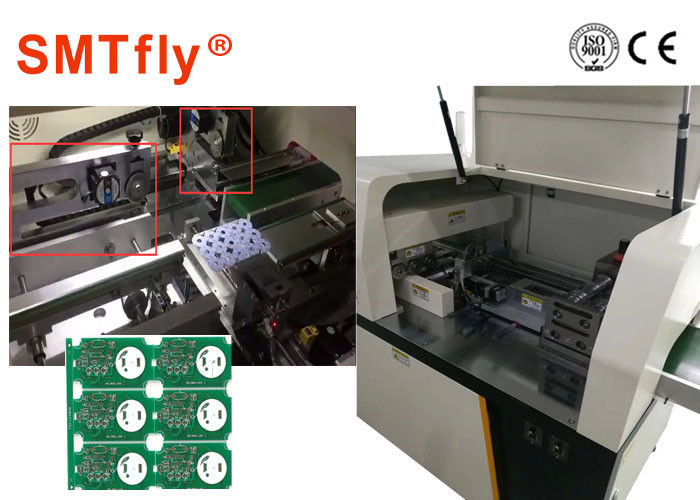

          Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine SMTfly-5

PCB De-panel Separator-V Cut PCB Depaneling Machine for “#” Shape Panels Description:



This is a double directions depaneling with horizontal and vertical boards to realize inline depaneling for “#” shape panels at one time.High automation, connect PCB loader and unloader, can be achieved without human, save labor.Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs.One direction of depaneling is also workable, could set horizontal and vertical depaneling by touch screen, more intelligent.Dust cleaner is optional.



Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine,SMTfly-5​ Features:



  1. Workable for “#”shape depaneling.
  2. Horizontal and vertical depaneling is optional.
  3. Blade set can be quickly changed.
  4. Could connect PCB loader and PCB unloader to realize fully automated production to save labor.
  5. Simple operation, workers can operate it after training.
  6. Unique new blade design, lifetime should be increased by 1.5-2 times.
  7. Safety: Sensor is used to ensure safe production.

Optional Horizontal and Vertical 300mm V Cut PCB Depaneling Machine Panels Specification:



Blade dimension

Circular blade:¢80 ¢60mm

Linear blade: 356×43.5×6mm

PCB width 300mm(could be customized)
Driven mode Stepping / Servo motor(optional)
V-cut angel >40°
Cutting speed 300-500/s
Blade material High speed steel
Air pressure 0.5-0.8Mpa
Voltage 220/110V
Dimension 1250(1560)mm×800mm×1295mm
Packaging weight 300kgs
