320*320mm PCB Dlaser Depaneling Machine With 60000rpm/Min Spindle

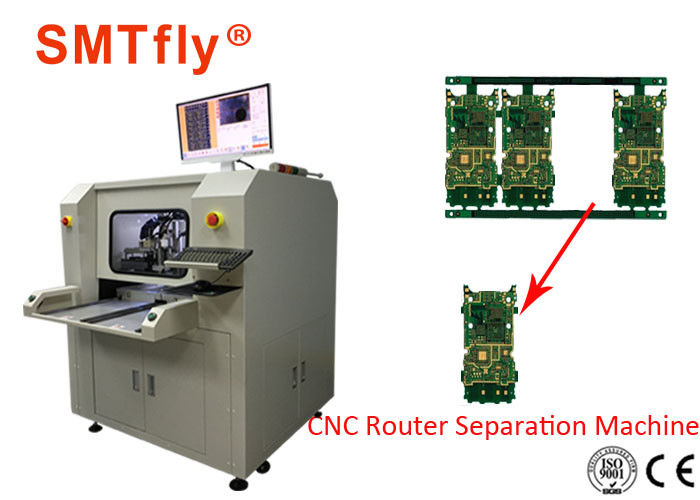

Large Image : 320*320mm PCB Dlaser Depaneling Machine With 60000rpm/Min Spindle

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-F01-S

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	Wooden Box
Delivery Time:	15 Working Days after Payment
Supply Ability:	30Sets/Month

Contact Now

Detailed Product Description

Vision System:	CCD AOTU Offset	Spindle:	60000rpm/min
Change Cutter:	Specialization	PCB Size:	320*320mm
Air Supply:	4-6KG/cm2	Vacuum Setup:	AUTO
High Light:	cnc pcb router machine , pcb depanelizer machine

320*320mm PCB Depaneler Machine with 60000rpm/min Spindle for Separation Circuit Boards,SMTfly-F01-S Features:

X10 zoom-in image makes programming easier&increase the accuracy of point setting.
Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

320*320mm PCB Depaneler Machine with 60000rpm/min Spindle for Separation Circuit Boards

Parts list:

I. Hardware
SPINDLE	KAVO spindle(Model:4025HY)
CCD	Sony 520 line industrial cameras
LENS	Computar EX2C
Screw	TBI Precision ground ball screw imports
Guide	HIWIN widening Imported linear guide rail
MOTOR	JiaBao LCF Series
I/O CONTRONL CARD	HFC PCI-9074
DRIVER CONTRONL CARD	HFC PCI-9074
I/O CARD	PCI-9074-64pcs/-38pcs
Static cleanup	STATIC-ST401A Series
Computer	(RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface	AOC LCD17",Logitech mouse
2. software
Control system	Windows XP Professional (Service3,v.3244)
Operation GUI	English Windows XP
Program edit	Inline
Vision system	CCD AOTU offset
Control system	F 1.2.88 version

320*320mm PCB Depaneler Machine with 60000rpm/min Spindle for Separation Circuit Boards

Specification:

Overall
Dimensions(WDH)	1250mm1650mm1450mm
Weight	650KG
Height offset	60~110mm
Manipulator
Motor type	JiaBao series
Positioning repeatability	0.001mm
Axis working area(max)	650mm560mm50mm
Work station
PCB fixation	standard,specialization
PCB loading/unloading	manual
PCB size (max)	320*320mm
PCB thick (max)	5mm
Fixturing
Rigidity fixturing	Customized make fixture
Fixturing fixation	machinery
Spindle Motor
Power	150W
Spindle	60000rpm/min
Protect	self/wind cooling
Change cutter	Specialization
Routing capability
Cutting speed(max.)	80mm/s
Driving speed(max.)	2500mm/s
Precision of cutting	0.01mm
Vacuum System
Vacuum power	3.5KW AC 380V
Vacuum	plumb
Utilities
Power	2.0KW AC380V
Air supply	4-6KG/cm2

CNC PCB Router Separator with 0.01mm Positioning Repeatability

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.
