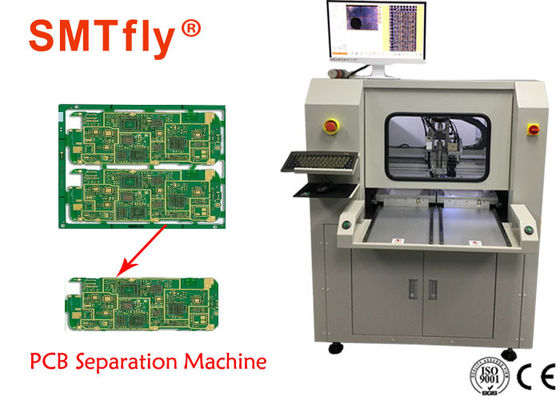

Automatic Router Pcb Depaneling Equipment For Cutting PCB Panel Into Single PCB

All Products

Laser PCB Depaneling Machine (23)

PCB Depaneling Router Machine (25)

V Cut PCB Depaneling Machine (29)

PCB Separator Machine (21)

PCB Scoring Machine (10)

PCB Loader Unloader (17)

PCB Laser Marking Machine (9)

Solder Paste Printing Machine (15)

Solder Paste Inspection Machine (8)

PCB Pick And Place Machine (17)

AOI Inspection Machine (17)

SMT Glue Dispenser Machine (14)

Laser Soldering Machine (10)

Robotic Soldering Machine (10)

Hot Bar Soldering Machine (17)

Screw Tightening Machine (11)

Stencil Cleaning Machine (16)

Certification

Contact Now

Detailed Product Description

Air Supply:	4-6KG/cm2	Vacuum Setup:	AUTO
Driving Speed(max.):	2500mm/s	Power:	2.0KW AC380V
Weight:	650KG	Color:	White
High Light:	cnc pcb router machine , pcb cnc router machine

Automatic PCB Depaneling Router Machine for Cutting PCB Panel into Single PCB Parts list:

I. Hardware
SPINDLE	KAVO spindle(Model:4025HY)
CCD	Sony 520 line industrial cameras
LENS	Computar EX2C
Screw	TBI Precision ground ball screw imports
Guide	HIWIN widening Imported linear guide rail
MOTOR	JiaBao LCF Series
I/O CONTRONL CARD	HFC PCI-9074
DRIVER CONTRONL CARD	HFC PCI-9074
I/O CARD	PCI-9074-64pcs/-38pcs
Static cleanup	STATIC-ST401A Series
Computer	(RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface	AOC LCD17",Logitech mouse
2. software
Control system	Windows XP Professional (Service3,v.3244)
Operation GUI	English Windows XP
Program edit	Inline
Vision system	CCD AOTU offset
Control system	F 1.2.88 version

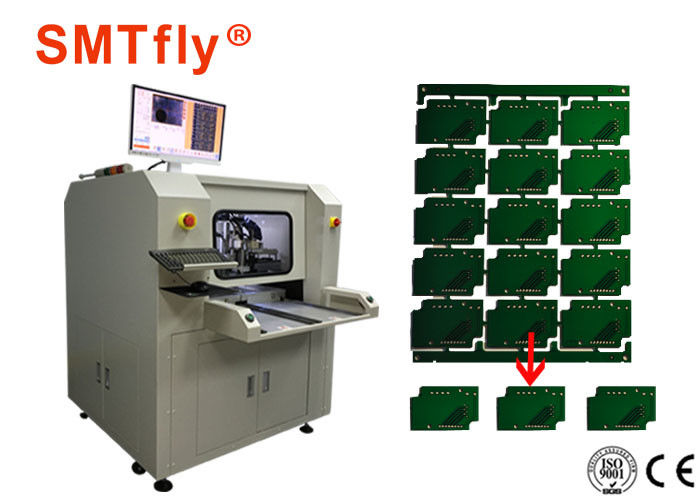

Automatic PCB Depaneling Router Machine for Cutting PCB Panel into Single PCB

Specification:

Spindle Motor
Power	150W
Spindle	60000rpm/min
Protect	self/wind cooling
Change cutter	Specialization
Routing capability
Cutting speed(max.)	80mm/s
Driving speed(max.)	2500mm/s
Precision of cutting	0.01mm
Vacuum System
Vacuum power	3.5KW AC 380V
Vacuum	plumb
Utilities
Power	2.0KW AC380V
Air supply	4-6KG/cm2
Programming
Program edit	Inline
Function edit	Line,arc,circula,U-curve
Program storage	HDD
Vision system	SONE colour CCD
milling cutter offset	AUTO
Vacuum setup	AUTO
Operation Monitors
Iindicator	Iindicator Machine state
tool check	Automatic detection tool life, the use of time testing
Motor protect	Have overheating, overload, low voltage protection function
motor over loading check	Have Overload, the line is normal, low voltage protection function
Tool usable time	Automatic detection tool life,
Data statistic	Separate board model, separating count, diverse counting methods
Error record	Software automatically records all alarms memory of machines
III. Accuracy
Axis precision	0.001mm
Cutting precision	0.1mm
IV. Safety
Working area protect	With four sealed protection
Door sensor	Front and rear safety door micro-switch sensor (optional)
Exigency stop button

Automatic PCB Depaneling Router Machine for Cutting PCB Panel into Single PCB Features:

X10 zoom-in image makes programming easier&increase the accuracy of point setting.
Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
