0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

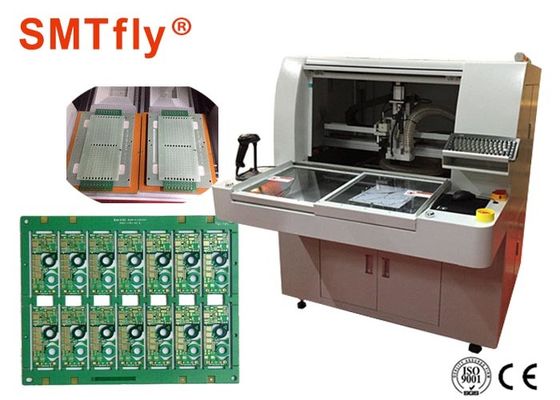

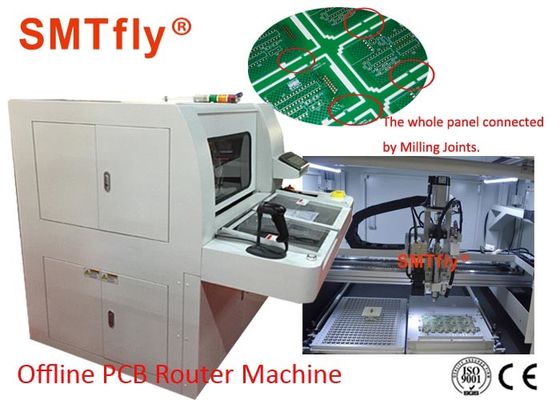

0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints

China 0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints supplier
0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints supplier 0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints supplier

Large Image :  0.05mm Accuracy Depaneling Router Printed Circuit Board Machine For PCB Panel Connection With Milling Joints

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
Machine Repeat Ability: ± 0.02mm Dust Collection: Dust On The 2HP
Cutting Accuracy: ± 0.05mm Loading: Manual
Panel Size: 320*320mm(standard) Resolution: ±0.01mm
High Light:

pcb cnc router machine

,

pcb depanelizer machine

0.05mm Accuracy PCB Depaneling Router Machine for PCB Panel Connection with Milling Joints,SMTfly-F01-S Features:



1. Manual loading/unloading processing;

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value;

3. Friendly touch panel with 10X CCD camera to minimize the time of programming;

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy;

5. Auto router bit check to prevent the bit break incomplete cutting.



0.05mm Accuracy PCB Depaneling Router Machine Positioning Repeatability:



It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.



Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3.Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.


0.05mm Accuracy PCB Depaneling Router Machine for PCB Panel Connection with Milling Joints Specification:



Model SMTfly-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeat ability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor KAVO Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
