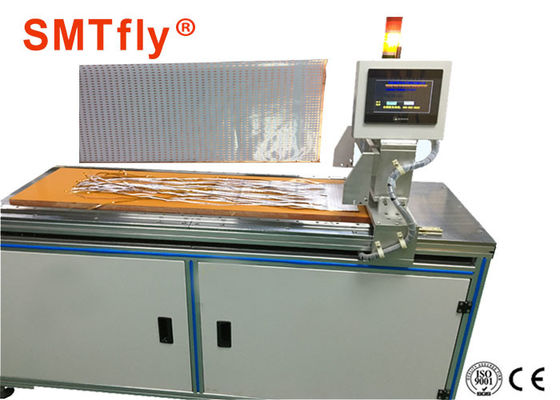

7mm FPC Flex LED Separation Cutting Pcb Depaneling Equipment With Knife / V Cut Pcb Depanelizer

7mm FPC Flex LED Separation for Cutting FPC Depaneling Machine with Knife,SMTfly-1SN

Specification:

7mm FPC Flex LED Separation for Cutting FPC Depaneling Machine with Knife Technical requirements:

1. Light bar length (1500D type) 600~1500mm (replacement of bottom plate jig);

2. Width of the light bar (1500D type) 6~12mm (replacement of jig, knife seat, both sides of the pressure block);

3. Each cut 30;

4. There are positioning holes at the front and rear ends of the light bar;

5. Light bar substrate manual feeding.

7mm FPC Flex LED Separation for Cutting FPC Depaneling Machine with Knife Features:

Microcomputer control, Chinese and English human-machine interface;

The machine automatically cuts, the high accuracy of the sub-board, neat cut surface;

According to different product replacement knife group, fast, convenient and simple;

Speed, high efficiency, reach the energy can reach 10000PCS/H.

7mm FPC Flex LED Separation for Cutting FPC Depaneling Machine Application:

1. Manually on the FPC light bar;

2. Automatic cutting;

3. Suitable for all light strips with a board width of less than 12mm (replacement of jigs, toolholders, and clamps on both sides);

4. Knife modular, replaceable.
