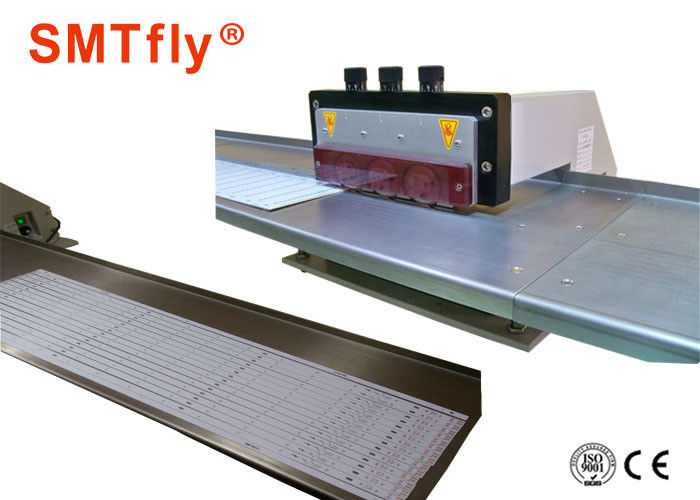

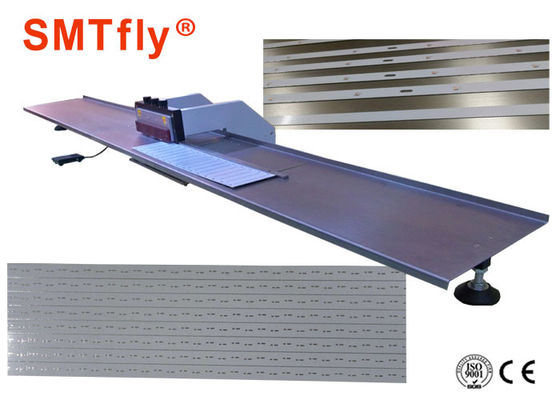

Automatic Multi Blade Pcb Depaneling Equipment 400*400*340mm

China Automatic Multi Blade Pcb Depaneling Equipment 400*400*340mm supplier
Automatic Multi Blade Pcb Depaneling Equipment 400*400*340mm supplier Automatic Multi Blade Pcb Depaneling Equipment 400*400*340mm supplier

Large Image :  Automatic Multi Blade Pcb Depaneling Equipment 400*400*340mm

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 7-15 Working Days after Payment
Supply Ability: 60Sets/Month
Detailed Product Description
Machine Size: 400*400*340mm Platform Size: 2400*305mm (Customized)
The Longest Minimize: No Limited Minimize Speed: 0-400mm/s
Minimize Thickness: 0.8-3.0mm Color: White
High Light:

pcb v cutter

,

pcb v cut machine

Automatic Multi blade PCB Separator / PCB Depaneling / LED PCB Depaneler,SMTfly-3S

Description:



There is no limit on the length of cutting panel for this kind of separator .Compared with traditional way of scored board with hand , It will not only greatly improve efficiency of production, but also for its better quality .
“Customer first ,Quality first"is our aim. We are constantly improving the quality of product ,improve the performance to meet user’s need .We also place emphasis on after-sales service. At the some time ,welcome our user to come up with valuable comments.
Our company also have a variety of other models of “v” groove and pass through PCB Separator machine .Welcome to purchase!



Automatic Multi blade PCB Separator / PCB Depaneling / LED PCB Depaneler Specification:



Machine Size 400*400*340mm
Platform size 2400*305mm
The Longest Minimize No limited
Minimize Speed 0-400mm/s
Minimize thickness 0.8-3.0mm
Weight 60Kg



Automatic Multi blade PCB Separator / PCB Depaneling / LED PCB Depaneler Feature:



  • Separates boards up to 3.5mm thick;
  • Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors;
  • Operator foolproof! Panels cannot be inserted into the knives;
  • except on the score line;
  • Motor driven;
  • Handles high components up to 1";
  • Bow waves that can occur with round knives are avoided;
  • Easy adjusting of distance between knives.



Automatic Multi blade PCB Separator / PCB Depaneling / LED PCB Depaneler Operation principles


1. Connect power, running 2 minutes, adjust speed to medium speed position, insert v-groove pcb into blade slot. Adjust upper blades adjustment button if cutting effect is not good. Upper blades adjustment principles: highest first blade, followed by the second and third lowest blade, 3 blades cut off pcbs together. In generally, upper blades are aligned with lower blades, or slightly lower 0-0.2mm, then lock the screws.
Motor speed controller adjustment principles,the faster motor drivers, the smaller force, the slower motor drivers, the larger force. Adjust suitable speed according to cutting effect. Use lower speed at the beginning, then turn fast step by step after normal cutting.
