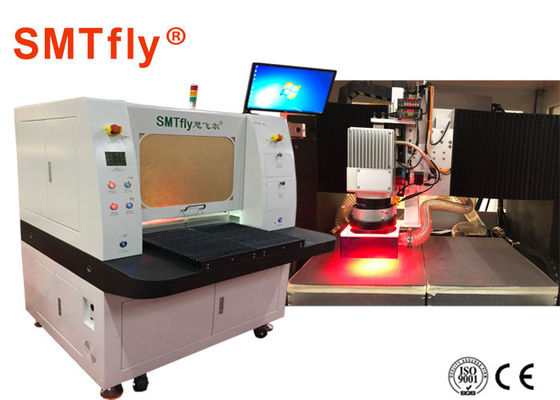

Flex PCB Separator Machine for De-paneling FPC Laser Depanelizer SMTfly-LJ330 Description:



Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/15W@30KHz

Galvanometer working field Per One Process: 30 × 30mm

Power consumption for the hole machine: 2KW



Flex PCB Separator Machine for De-paneling FPC Laser Depanelizer Features:



1 High Accuracy: The combination of a low-drift galvanometer and a fast ironless linear motor system platform enables fast cutting while maintaining micrometer-level accuracy.



2 easy to learn: independent research and development of Windows-based control software, easy-to-use Chinese interface, friendly and beautiful, powerful and diverse, easy to operate.



3 Intelligent Automated: Using high-precision CCD automatic positioning, focusing, positioning fast and accurate, without manual intervention, simple operation, to achieve the same type of one-button mode, greatly improve production efficiency. The galvanometer auto-calibration, auto-focusing and full automation are achieved. The laser displacement sensor is used to automatically adjust the height of the focus to the tabletop to achieve fast alignment and save time and effort.



Flex PCB Separator Machine for De-paneling FPC Laser Depanelizer Specification:



Size (L*W*H) 1250mm*1300mm*1600mm
Weight 1500Kg
Laser power supply AC220V / 3KW
Laser Sources All Solid State 355nm UV Lasers
Laser power 10W (customer-made or imported according to customer requirements)
Thickness ≤ 1.2 mm (depending on actual material)
Machine accuracy ±20 μm
Platform positioning accuracy ±2 μm
Platform repeat ability ±2 μm
Cutting web Double Y table, single Y area 300*330mm
Focus spot diameter 20±5μm
Ambient temperature/humidity 20±2 °C/<60 %
Machine Tool Body Galvo mirror system imported
Motion System Full-closed AC linear motor system
Motion Control System Original Import
Necessary hardware &software Including PC and CAM software



Flex PCB Separator Machine for De-paneling FPC Laser Depanelizer Application:

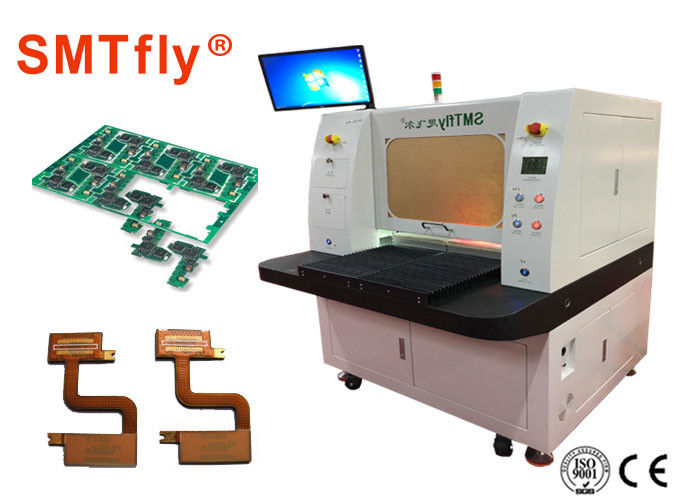

Suitable for cutting objects: FPC circuit board shape, chip cutting, mobile phone camera module.

Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult, complex patterns and other exterior cutting

5High-performance laser: Adopting the solid-state UV laser of the international first-line brand, it has the advantages of good beam quality, small focal spot, uniform power distribution, small thermal effect, small kerf width and high cutting quality, which guarantees perfect cutting quality.
