Detailed Product Description
Panel Width: ≤250 PCB Width: 8~210
PCB Length: 200mm(Min) PCB Thckness: 0.8~3.5
Power Source: 110/220 Blade Type: Circular Blades
Color: White Weight: 260Kg
High Light:

pcb v cutter

,

pcb v cut machine

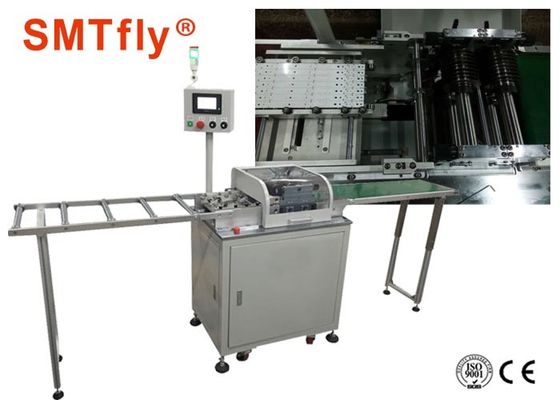

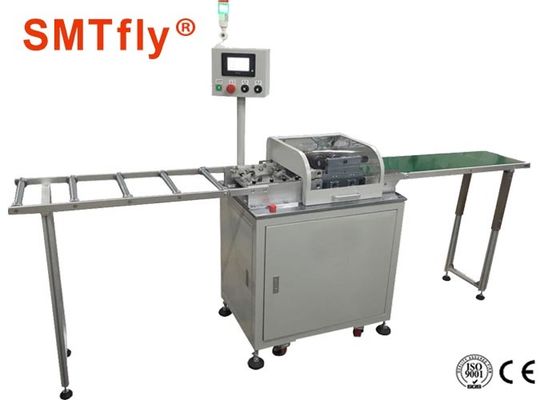

Multiple Group Blades Pre - scored LED PCB Depaneling Machine High Speed SMTfly-5​

Feature:



  1. Suitable for V-scored panels;
  2. Available for different width panel, no limit on PCB length;
  3. Use PLC, easy to operate;
  4. English software;
  5. There is total capacity and daily capacity record;
  6. Has a counter function, stop working when it reach the setting capacity;
  7. Has auto-alarm device;
  8. Use 2 rows of blade sets for depaneling to realize multipieces singulation to improve capacity;
  9. Safty device. Machine will alarm and stop working if safty cover is open during depaneling. But it works under testing mode;
  10. 2 rows of blades could be adjusted 0-4mm in horizontal direction, 0-7.5mm in vertical direction;
  11. Has conveyor for landing to send the boards to next process to avoid manual damage from picking;
  12. Tail of conveyor height is adjustable for next processing;
  13. Conveyor landing speed and blade speed is adjustable;
  14. Circular blades could be re-sharpened.

Multiple Group Blades Pre - scored LED PCB Depaneling Machine High Speed Specificaiton:



Pre - Scored LED V Cut PCB Depaneling Machine Multiple Group Blades High Speed SMTfly-5

   A A:≥ 0.25mm

B :1.2mm(Max)

Standard cutter :

C1:≥0.5mm

C2:≥2.0mm

D :≥8mm(could be custom made)

H :≤14mm

Θ°:≥20°



Panel Width mm ≤250
PCB Width mm 8~210
PCB Length mm 200mm(Min)
PCB Thckness mm 0.8~3.5
Depaneling Speed mm/min 60~7500
Power Source VAC 110/220
Power W 450
Weight Kg 260


Multiple Group Blades Pre - scored LED PCB Depaneling Machine High Speed Maintenance:



  1. Make sure machine is clean before running;
  2. Add lubricating oil to sliding parts regularly;
  3. Check the tightness of fixed screws periodically;
  4. Please clean the machine and filter box dust after operation per day;
  5. It is necessary to add rust preventing oil to blades and shaft and cover with cloth, in case of stopping using the machine.
