0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

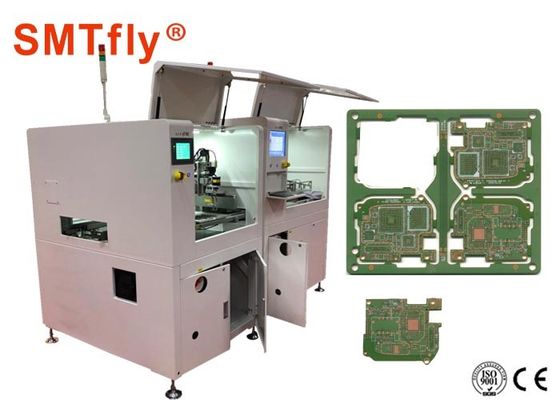

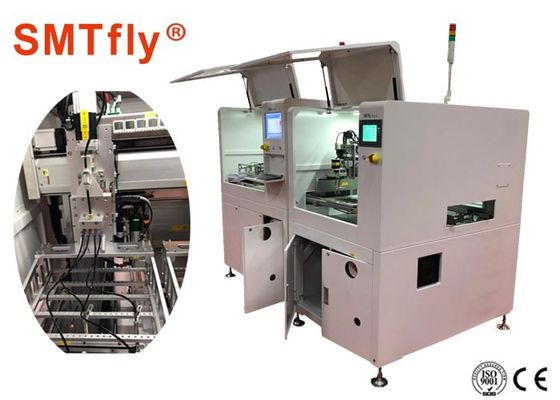

0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System

China 0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System supplier
0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System supplier 0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System supplier

Large Image :  0.5 - 6mm Boards Thickness PCB Depaneling Router Machine With Easy Win 7 System

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F05

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Contact Now
Detailed Product Description
Precision Position: 0.1mm Cutting Range: 330*330mm(S)
Servo Control: Fuji Servo Airspeed: 60m/min
Cutting Speed: 0-100mm/s Suction Air Pressure: 195mm-Ag
Color: White Warranty: 1Year



0.5-6mm Boards Thickness Depanelization PCB Router with Easy Win 7 System Optional Dust Collector:


Dust collector (mainly used to collect dust generated during cutting). Its main power supply is 3-phase AC
220V/AC380. Confirm the motor running direction after power-on. The dust that is cut will fall into the dust concentration,Users can collect and do centralized processing.

0.5-6mm Boards Thickness Depanelization PCB Router with Easy Win 7 System


There is no better way to depanel a printed circuit board than with the SMTfly PCB Router. This PCB depaneler is the answer for hassle-free PCB depaneling through the employment of a router bit that minimizes stress on components. The high speed spindle included in the machine speeds up cutting and maintains precision, while also allowing for flexible panel designs with various cutting patterns. Our PCB depaneler will also cut down on bit replacement with our router bit depth adjustment system, which automatically shifts up to 5 depth levels. The PCB router bit maximum cutting speed is 50mm per second, while the traveling speed is a maximum of 800mm per second.

Easy Operation

Easy to operate, the image processing software of the PCB router makes it simple to program cutting paths with point-and-click technology, whereas it also automatically compensates for alignment with a CCD camera. With the simple touch of an external button PCB depaneling can be started promptly for easy operation, and through the easy to use pre-programming mode, the operation of the machinery is made even more undemanding. The PCB depaneler is also very low maintenance, as the machine is designed for easy access and repairs. Frame structure and the spindle motor operate on an X, Y and Z axis.



Cost Effective



With the variety of benefits that our depaneling systems offer, and the ease in which the machinery can be operated, the price is undeniably practical. Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.

0.5-6mm Boards Thickness Depanelization PCB Router with Easy Win 7 System Feature:


The machine series is mainly an on-line sub-board equipment, which uses a milling cutter to run at a high speed.
Pre-edit path trajectories are segmented to avoid manual breaks, V-CUT or PUSH cutting, and increase production
Product quality, reduce scrap rate, this machine uses human-machine interface WIN7 operating system, and is equipped with high-pixel CCD vision
System, teaching production and editing to modify the cutting path is very fast, can be single-step and overall modification, deletion, addition
Program track. This model adopts follow-up dust removal and double gripping at the same time, which improves the dust removal ability and grasping and releasing.
Board efficiency.


(1) Vision System


1.Mark positioning correction
Mark positioning correction function is based on computer image processing, which is performed on the PCB placed on the processing table.
Positioning correction to achieve higher cutting accuracy, and for the multi-panel PCBA, only one piece is made
PCBA cutting program and Mark reference position, other PCBA can be corrected according to the teaching board after Mark correction
Cutting to improve cutting accuracy;
2 Image zoom assist teaching
When the image is reduced, the field of view is increased, which is beneficial for program editing to quickly find a point. When the image is enlarged, the field of view is reduced.
Conducive to precise alignment.
3 Edge positioning cutting function (optional)
The edge-cutting is performed by using the CCD to first position the cutting position and find the precise cutting edge.
The lower cutting point greatly reduces the degree of unevenness of the edge of the product during cutting and improves the cutting precision.


(2)Tool Monitoring System


1.Tool segmentation
For the PCBA thickness, the tool can be set to use the segment length and the tool single segment cutting distance, that is, the same
The milling cutter can be used in several stages. After cutting a certain distance, another section is used to improve the cutting efficiency and reduce the cutting efficiency.
Use less consumables and make full use of the tools;
2.Broken knife detection
The equipment is equipped with a broken knife slide detection sensing device to cut off the tool during the machining process, the tool slips, etc.
Abnormal conditions are monitored, and the detection frequency can be set as needed to protect PCBA from tools
Abnormal and damaged, can also prompt the operator equipment abnormalities.
3.Automatic tool change function
Countertop device 1~8 tool change slots, automatic tool change can be performed when the tool is abnormal, which improves production efficiency and reduces
Stop time.


(3) Double gripping at the same time


The Carry module is equipped with two grippers, Z1 and Z2, which can be taken while removing the finished daughter board.
The main board of the front-end area to be processed also puts down the board to be processed when the processed sub-board is lowered.


(4) Track memory / auto-width adjustment


This model can automatically record the track width according to the type of machine technology. It can be adjusted automatically when this model is turned on.
Front and rear track width.


(5)Link copy


For array-style board PCBA, sub-board can be used under the premise of making a sub-board program
The sequence is copied out of the matrix array program, that is, the entire slab is processed to cut the trajectory, which greatly reduces the program editing time.
High line change efficiency.



0.5-6mm Boards Thickness Depanelization PCB Router with Easy Win 7 SystemSpecification:



XYZ itinerary 450*600*60mm (S)
XYZ itinerary 620*700*60mm(L)
Router Min 0.8mm,max 3.0mm
Cutting Speed 0-100mm/s
Shape of Cutting Line,L shape,Square,Round,Arc
Airspeed 60m/min
Spindle motor Imported from Germany
Cutting range 330*330mm(S)
Cutting range 500*420mm(L)
Machine Size 1732*1100*2088mm(S)
Machine size 2032*1220*2088mm(L)
Host control Industrial computer
Servo control Fuji servo
Static elimination SMC Ion generator
Vacuum method Under vacuum
Precision position 0.1mm
Screw guide HIWIN/THK
Track width adjustment Automatic
Into board direction Left in right out
Entry and exit method Vacuum suction
Board thickness 0.6-5mm
Power A220V 50Hz
Power consumption 1.5Kw
Air consumption 10N1/min
HMI 12 inch industrial capacitive screen
Operation Environment Win 7
Permission distinction Password
Dust filtration Secondary filtration
Weight 900Kg



0.5-6mm Boards Thickness Depanelization PCB Router with Easy Win 7 System
