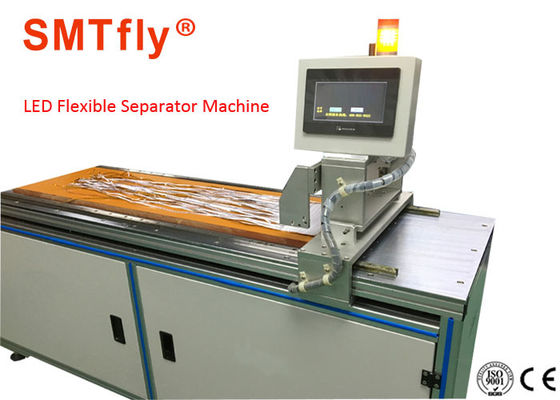

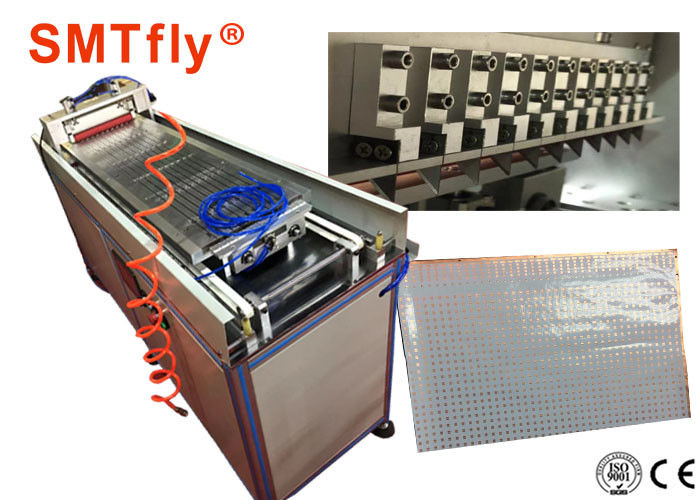

300-1200MM LED Strip Line PCB Separation Machine Customized Fixture / Blades

Large Image : 300-1200MM LED Strip Line PCB Separation Machine Customized Fixture / Blades

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-1SN

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	1USD/Set
Packaging Details:	plywood case
Delivery Time:	payment after 7-15 working days
Supply Ability:	10/Sets/Month

Contact Now

Detailed Product Description

Working Pressure:	0.6-0.8 MPA	Power Supply:	AC 110～220 V
Plate Accuracy :	0.1MM	LED/FPC Board Length:	300~1200 MM
Brand:	SMTfly	Weight:	300Kg
Color:	White	Warranty:	1 Year
High Light:	pcb v cutter , pcb v cut machine

300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and BladesTechnical requirements:

1. Light bar length (1500D type) 600~1500mm (replacement of bottom plate jig);

2. Width of the light bar (1500D type) 6~12mm (replacement of jig, knife seat, both sides of the pressure block);

3. Each cut 30;

4. There are positioning holes at the front and rear ends of the light bar;

5. Light bar substrate manual feeding.

300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Features:

Microcomputer control, Chinese and English human-machine interface;

The machine automatically cuts, the high accuracy of the sub-board, neat cut surface;

According to different product replacement knife group, fast, convenient and simple;

Speed, high efficiency, reach the energy can reach 10000PCS/H.

300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Description:

1.The purpose of this manual is to guide users to use the device correctly, reduce unnecessary waste, ensure that the device can function properly, and maximize the benefits for the user;

2. Flexible PCB panel is to be separated into single PCB;

3.The key components such as cylinders are all imported components, so

that the machine is quick and stable during the operation, avoiding the

error of mechanical action;

4.Using Mitsubishi PLC and Weilun touch screen control system, the

position and speed can be set;

5.The moving part of the cutter adopts precision micro-stepping motor

to ensure the smooth running track and the cutting length can be set.

300-1200MM LED Strip Line PCB Separation Machine Customized Fixture and Blades Application:

1. Manually on the FPC light bar;

2. Automatic cutting;

3. Suitable for all light strips with a board width of less than 12mm (replacement of jigs, toolholders, and clamps on both sides);
