41L Pneumatic Ultrasonic Stencil Cleaner Machine With Filtration System SMTfly-750

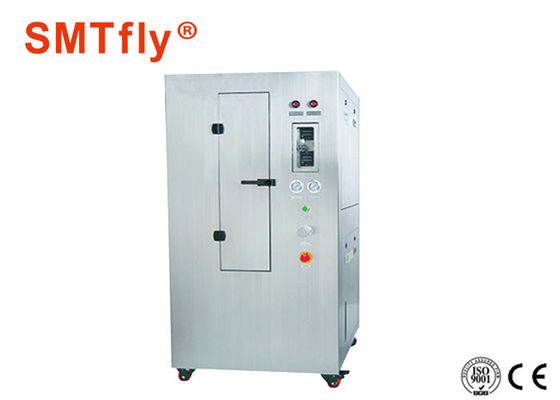

Large Image : 41L Pneumatic Ultrasonic Stencil Cleaner Machine With Filtration System SMTfly-750

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-750

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7-15 working days
Supply Ability:	30Set/Month

Contact Now

Detailed Product Description

Drying Time:	3-6 Mins	Air Consumption:	200~600L/Min
Applicable Steel:	75075010mm	Volume:	41L
Net Weight:	300Kg	Dimension:	8009501650mm
High Light:	smt stencil cleaner , ultrasonic pcb cleaning machine

Pneumatic Stencil Cleaner with Filtration system-Stencil Cleaning Machine,SMTfly-750 Feature:

1. With different solutions, solvents, can be washed solder paste steel mesh, red plastic steel mesh, resin network, copper mesh.

2. SUS304 All stainless steel body, beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards.

3. All pipes, angle seat valves and other control components are used SUS304 material.

4. Pneumatic operation, no electricity, there is no fire and other security risks.

5. High-density isobaric rotary cleaning nozzle: clean and strong and will not damage the steel mesh tension.
6. three-stage filtration system, low exhaust and S-type exhaust pipe design, solvent recycling.

7. Large filter drum, replace the filter is more convenient; large flow, cleaning ability.

8. Optimized rotating mechanism, spray bar rotation more smoothly and no wear.

9. one-button operation and automatic drainage function, the operation is very simple.

10. Global high-quality parts, to ensure high quality, stable performance, long service life.

11. Modular control and quick-release design, maintenance more convenient.

User-friendly design, one-button operation, easy to complete the cleaning, drying the whole process. High-density isobaric bilateral rotary cleaning, strong cleaning, steel mesh tension is not affected.

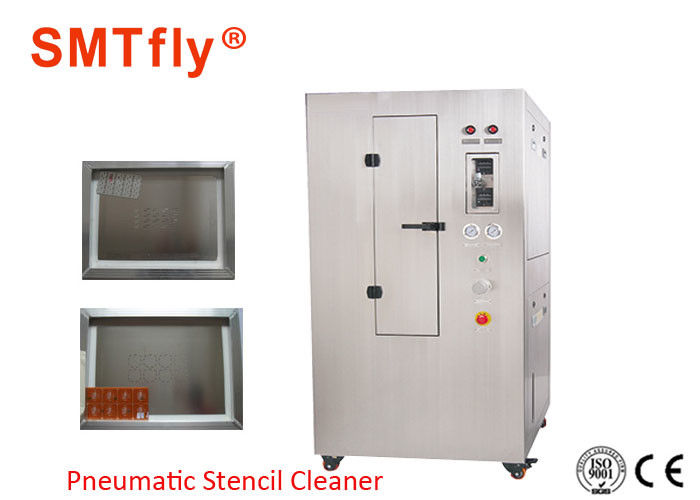

Before Cleaning	After Cleaning

Three - level filtration system:

Project	Fitter	Brand	Filter replacement cycle
Level1 1mm	Impurities/Labels	SMTfly	No need
Level2 20um	Solder ball/Rosin particles	SMTfly	12 months
Level 1um	Paste/rosin paroles	SMTfly	1~3 mon(past)

Pneumatic Stencil Cleaner with Filtration system-Stencil Cleaning Machine Specifications

Project	Specifications
Cleaning fluid	Alcohols, water-based solvents, are applicable
Applicable screen size	≤ 750mm of the screen can be cleaned
Cleaning time	2-5 mins
Drying time	3-6 mins
Cleaning fluid consumption	200~300m/pcs
