Rinse Time: | 2-5 Mins | Cleaning Time: | 2-5mins |
---|---|---|---|
DI Water Supply: | 30~60L/min | Liquid Tank Capacity: | 50L* 2PCS |
DI Water Filter: | 0.45μm | DI Water Pressure: | ≤0.4mpa |
High Light: | ultrasonic pcb cleaning machine,nozzle cleaning machine |

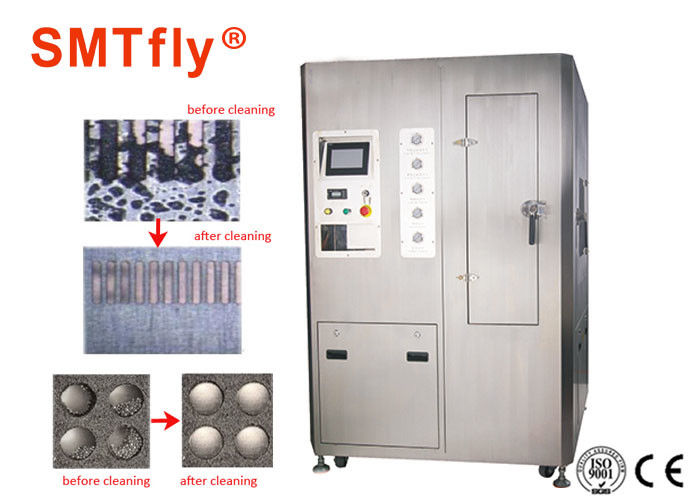

Water - based Steel Net Cleaning Machine Cleaning Process,SMTfly-800 Characteristics:
1 Quick & super clean effect:
SMT steel mesh, copper mesh, resin mesh, screen, PCB misprinting board and PCBA board, can quickly and effectively clean the surface after printing to the residual solder paste, red plastic and other pollutants;
2 Standard water-based automatic cleaning mode:
In a cleaning room to complete the cleaning, rinsing, drying all the cleaning process, small size, compact structure;
3 Full Process Visualization:
The cleaning room is equipped with a visual window, the cleaning process at a glance;
4 Wide range of applications:
SMT stencil, screen, India plastic governance, SMT scraper, large size PCBA, Misprint plate;
5 DI water real-time resistivity cleanliness monitoring system:
Used to monitor the cleaning effect, the resistivity can be set, resistivity control range 0 ~ 18MΩ;
6 Nozzle pressure adjustable and symmetrical design:
To solve the SMT steel mesh in the cleaning process by high pressure spray conditions under the tension problem;
7 Standard cleaning tank heating system:
Water-based process on the needs of heating emulsification, greatly improving the cleaning efficiency, shorten the cleaning time;
8 Low operating costs:
Built-in filter device can be used to achieve the recycling of solvents to extend the pollutant load saturation time, at the end of the cleaning using compressed air recovery pipeline and the pump within the residual chemical solution, can effectively save 50% cleaning agent;
9 Can be cleaned oversize size PCBA (800mmx800mm)
10 High pressure fan + four wind knife wind cut dry:
Using 5.5HP high pressure fan, more efficient (3 to 5 minutes), more thoroughly!
11 Full Chinese large touch screen interface:
Color touch screen, PCL control, according to the program run; can set the solution temperature, cleaning time, rinse times / time, rinse temperature, drying time, drying temperature, conductivity monitoring and other parameters.
Water - based Stencil Cleaning Machine Cleaning Process,SMTfly-800 Specifications:
Applicable screen size | Maximum750(L)*750(W)*40(H)mm(Special size should be customized) |
Liquid tank capacity | 50L* 2PCS |
Cleaning method | Steel net reciprocating movement, cleaning liquid high pressure liquid jet |
Rinse method | Open loop DI water or closed-loop chemical spray |
Drying method | Four wind knife wind cut dry |
Cleaning time | 2-5mins |
Cleaning isolation time | 1min |
Rinse time | 2-5mins |
Rinse Drying time | 3-5mins |
Resistivity tester range | 0--18MΩ |
Liquid heating temperature | Room temperature ~60℃ |
Liquid tank heater power(KW) | 9KW |
Rinse tank heater power | 9KW |
Noise | Less than 65 decibels |
Drying temperature | Room temperature --90℃ |
Drying heater power(KW) | 9KW |
The total power is about | 33KW Normal working power 3-6KW |
Chemical liquid level filter | 0.45μm |
DI water filter | 0.45μm |
DI water supply | 30~60L/min |
DI water pressure | ≤0.4mpa |
Water intake | G3/4” Inner teeth |
Drainage | G3/4” Inner teeth |
Row of chemical liquid mouth | Φ 12 hose |
Spray pump | 4HP Stainless steel multi-stage centrifugal pump |
Exhaust size | Φ123mm |
Power supply / gas source | AC380V 50HZ 90A / 0.45Mpa-----0.7Mpa |
Net weight | 500Kg |
Dimension | about 1500mm(L)*1260mm(W)* 1900mm(H) |

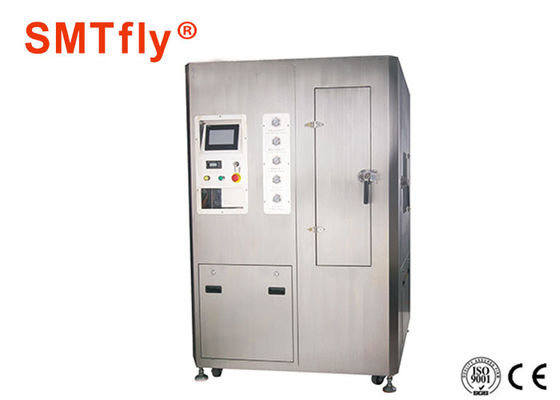

CW-800 Stencil Cleaning Machine Applications:
CW-800 is a "water-based cleaning fluid cleaning SMT steel mesh" cleaning process designed for the third generation of steel mesh cleaning machine
Automatic completion of cleaning, rinsing, drying process.(Using a unique double four spray bar cleaning, rinse design, double four wind knife wind cut dry design, rinse with online filtering, to ensure cleanliness)
Used in: SMT stencil, copper mesh, plastic mesh, resin net, plastic fixture, PCB misprinting board and a small amount of PCBA cleaning, can effectively clean the surface after printing and the hole wall residual solder paste, red plastic and other pollutants
CW-800 Washing schematic of water - based PCB Stencil Cleaning Machine
Using a unique double four spray bar cleaning, rinse design (1 map identifies each nozzle 10 nozzles), Double four wind knife wind cut dry design (2 logo), Greatly improve the cleaning efficiency, rinse with online filtering, to ensure cleanliness)
