Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150

China Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150 supplier
Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150 supplier Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150 supplier

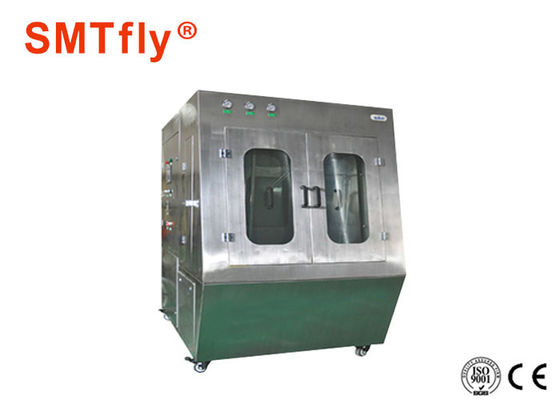

Large Image :  Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-8150

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Detailed Product Description
Total Power: 33KW Air Out Size: Φ124(W)×30mm(H)
DI Water Supply: 30~60L/min Noise: Less Than 50 Decibels
DI Water Pressure: ≤0.4Mpa Rinse Time: 2-5 Min
High Light:

smt stencil cleaner

,

nozzle cleaning machine

Circuit Board Washing,PCB Cleaner,PCBA Cleaning Machine,SMTfly-8150:



Water-based cleaner machine is a water-based cleaning process design cleaning equipment. Fully automatic finish cleaning- rinsing- drying process, the main application is stencil, plastic mesh, scraper, the furnace jig cleaning, etc.



Circuit Board Washing,PCB Cleaner,PCBA Cleaning Machine,SMTfly-8150​ Features:



1. Dedicated to water-based cleaning fluid to clean stencils, PCBA, etc. Process with high pressure spray system.



2. Double liquid tank, equipped with heating system, implementation needs cleaning and rinsing.



3. Technological process: cleaning chemical isolation - rinse (open loop/closed loop) - dry.



4. Preparation of advanced automatic touch screen operating software, program files stored, used and its simplicity.



5. Counting system function, can automatically accumulated cleaning sheet number and loop filter.



6. Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status.



7. Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem.



8. Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique.



9. Consumables monitor alarm filter service life.



10. Integral stainless steel fuselage, strong and durable, resistant to acid, alkali cleaning fluid, etc.



11. Floating lotion emissions filtering, more environmental protection.



12. Effect of high pressure fan + hot air drying, drying more quickly and thoroughly.



13.  Lower running cost, every time only 12 l liquid cleaning, clean end use compressed air recycling pipeline and pump more than residual liquid, liquid consumption can reduce 50%.



Circuit Board Washing,PCB Cleaner,PCBA Cleaning Machine,SMTfly-8150​ Specification:



Apply screen size Max 740mm(L) ×740mm(W) × 40mm(H)
Cleaning fluid capacity 50L*2PCS(max)
Best liquid usage 40L*2PCS
Clean and risn method Left-right moving high pressure liquid spray cleaning
Drying method High pressure hot air(Optional super models)
Clean time 2-5 Min
Cleaning fluid separation time 40S
Rinse time 2-5 Min
Rinse times 1-99times (adjustable)
Drying time 2-5Min
Cleaning liquid recycling 1μm (Micro filter: rosin, solder paste, flux and pollutants)
Rinse liquid emission filter 5μm (Micro filter: rosin, solder paste, flux and pollutants)
Liquid heating temperature room temp~60°C
noise Less than 50 decibels
Range of resistivity tester 0~18MΩ
DI water supply 30~60L/min
DI water pressure ≤0.4Mpa
DI water Gateway connecting pipe 1 Inch
Air supply 0.45Mpa ~0.7Mpa
Power supply AC380V 50HZ 65A
Total power 33KW
Net weight 500Kg
Air out size Φ124(W)×30mm(H)
Dimension 1600mm(L) ×1160mm(W) ×1850mm(H)

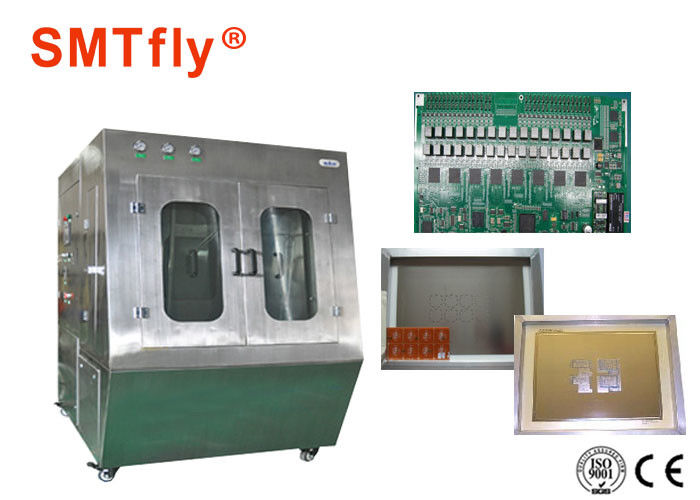

Circuit Board Washing,PCB Cleaner,PCBA Cleaning Machine,SMTfly-8150:



                         Double Liquid Tank Ultrasonic Pcb Cleaner,Circuit Board Cleaning Equipment SMTfly-8150
