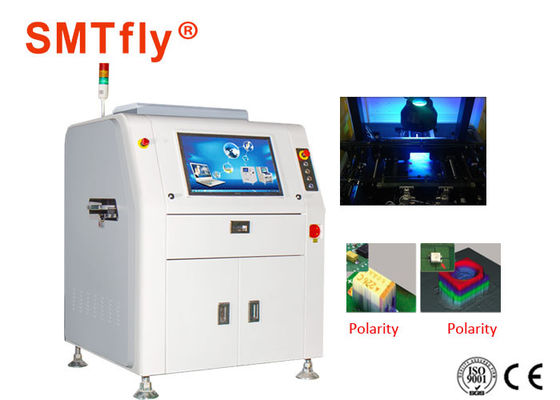

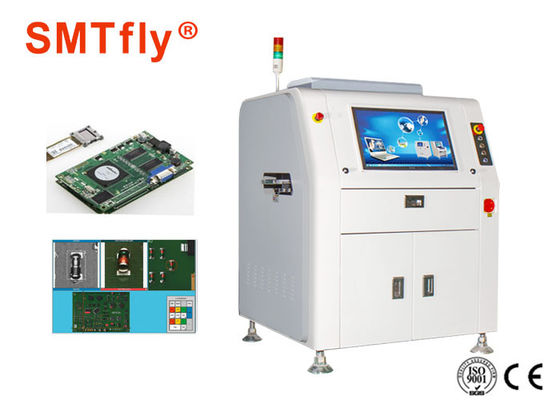

AC Server Driver Automated Optical Inspection Machine 4-6 Bar Air Supply SMTfly-Z6

China AC Server Driver Automated Optical Inspection Machine 4-6 Bar Air Supply SMTfly-Z6 supplier
AC Server Driver Automated Optical Inspection Machine 4-6 Bar Air Supply SMTfly-Z6 supplier AC Server Driver Automated Optical Inspection Machine 4-6 Bar Air Supply SMTfly-Z6 supplier

Large Image :  AC Server Driver Automated Optical Inspection Machine 4-6 Bar Air Supply SMTfly-Z6

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-Z6

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days after payment
Supply Ability: 50Sets/Month
Detailed Product Description
FOV: 20*20mm PCB Size: 50mm*50mm-300mm *250mm(customize)
Driver: AC Server Component Clearance: Bot≤30mm
Air Supply: 4-6 Bar
High Light:

automated optical inspection machine

,

automatic optical inspection equipment

Solder Paste Inspection - Used SMT / PCB Equipment Marketplace,SMTfly-Z6​ Feature:

  1. High-Precision,Digital&High-distinguish ability color camera, to achieve output the high quality images;
  2. 3-conveyor sectional type design, increase the function of machines to board eccectively reduce the time of move the PCB ,promote the detection cycle time;
  3. Personalization operate design, can compatible let the stand & sit work patted;
  4. Omnibus software algorithms and images analysis technics are the strong;
  5. Induction CAD import to achieve component standard automatic chaining to achieve programming automation;
  6. Camera barcode automatic identification, good tracking the quality analysis of products;
  7. Panel several mark recognition and automatic shield of bad mark;
  8. Professional function of OCR/OCV characters identification;
  9. More AOI center manage system to achieved reduction in manpower;
  10. Strong SPC analyses soft helped to achieve quality control and complete.

Solder Paste Inspection - Used SMT / PCB Equipment Marketplace Specification:



Recognition system

Inspection

Using multiple algorithms synthetically such as WIDM,color image contrast technology, color extracting technology,similarity,two-value handing technology,OCR/OCV,solder ball inspection,PTH analysis etc.

Camera

Distal and high speed clock camera:20um(15um.12um.10um for option)

Lamp-house

Ring tower structure, high intensity RGB flash lamp-house

FOV

20mm*20mm

Image process

Speed

0201 Chip

<7ms

Per-image time

<100ms

Inspection Items

Paste Printing Defects

Missing,Misaligned,overflow,insufficient,as ting open, stain

Component Defects

Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged

Solder Defeats

Overflow,insufficient,short solder, stain

Mechanism system

PCB conveyor

PCB fixing: Bottom up,PCB warp correction Automatic PCB loading and unloading

Adjustable clearance, conforming SMEMA standard Orbit clearance:900±20mm

Conveyor Design

Three section rail designs, add waiting function, reduce the distance of movement, and promote the cycle time

PCB size

50mm*50mm-300mm

*250mm(customize)

PCB thickness

0.3mm-3.0mm

PCB Warp Tolerance

<2mm

Component Clearance

Top≤25mm, Bot≤30mm

X,Y

Platform

Driver

AC server

Orientation

<10um

Moving Speed

500mm/s

Soft system

Operation system



Controlling Recognizing

Characteristics

Set template images real time,count data and error gate value automatically, Three marks correction, input CAD data locate the templates automatically, the operator can combine algorithms according to the requirement

Operation

Graphic programming, Chinese English

Offline Programming

Offline programming and offline debugging

Network

NG adaptable, check and correct PCBA defects at repair station

Others

Machine Dimensions

1010mm*123mm*150mm

Weight

550KG

Power supply

AC220V 10% single phase 5a 50/60HZ,power consumption 1000w

Air supply

4-6 bar

Working Environment

Temperature 10-40℃, 30-80%RH





Solder Paste Inspection - Used SMT / PCB Equipment Marketplace Service:



Since the equipment acceptance,one-year warranty and lifetime maintenance

Customer service 24 hours to respond to customer demands, and response immediately

Free lifetime software upgrades, to ensure the latest software and perfect features

Occasional on the phone or on-sit customer visits, and timely communication with customers to improve the related issues

According to the customers demands,we can offer customer’s technician training in our headquarters our company can arrange accommodation and other related matters
