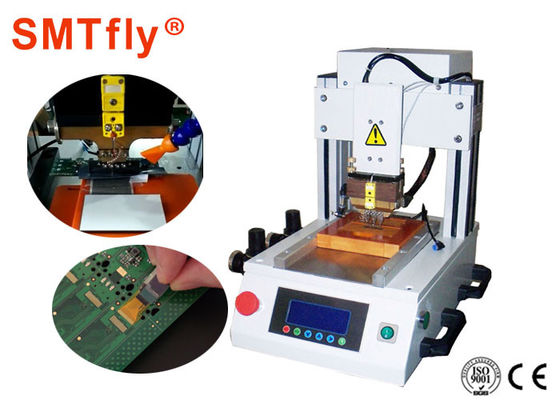

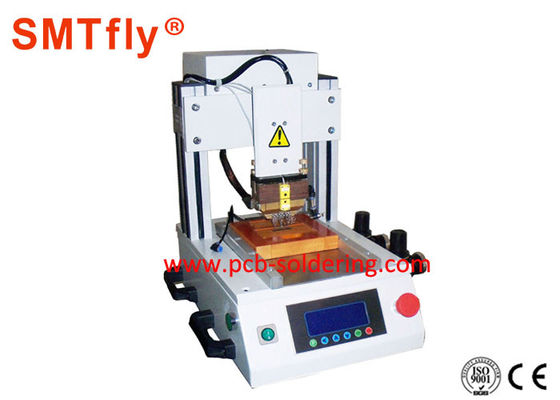

110*150mm PCB Soldering Machine For FPC 0.5-0.7MPA Air Pressure SMTfly-PP1S

110*150mm PCB Soldering Machine for FPC to PCB Hot-bar Soldering Machine,SMTfly-PP1S​ Application:

Apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc

use constant temperature to hot pressing

1. mainly apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc,

2. use constant temperature to hot pressing.

110*150mm PCB Soldering Machine for FPC to PCB Hot-bar Soldering Machine Features:

• Closed Loop PID temperature control with visible LED display;
• LCD display programmable pressure switch for precise force control;
• Each heating cycle is triggered by a real time pressure sensor;
• Floating thermode ensures consistent pressure and heat transfer
• between the thermode head and the parts to be joined;
• Silicon rubber can be fitted in bonding Heat Seal Connectors
• between LCD and PCB;
• Standard workpiece holder is mounted on a linear guideway and
• designed to allow for easy changeover and repeatable operation;
• Parts registration is adjusted by micrometer and secured by vacuum
• Lock;
• Optional CCD system for fine pitch component.

110*150mm PCB Soldering Machine for FPC to PCB Hot-bar Soldering Machine Specification:

Sample for Auto Hot-bar Soldering Machine-PCB Welding for Soldering:
