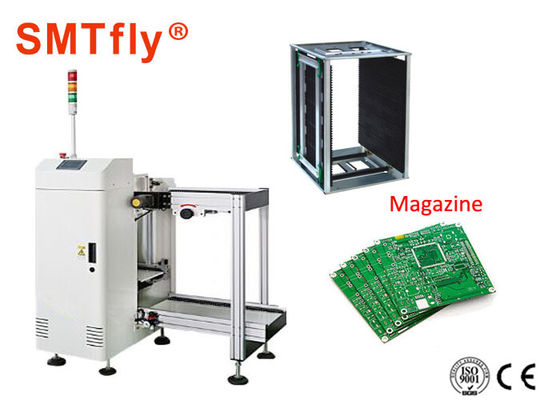

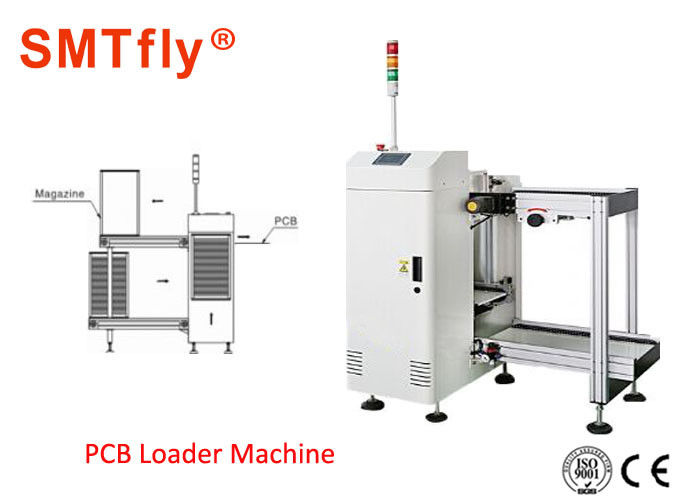

Customzied Magazine PCB Loader And Unloader , PCB Handling Equipment SMTfly-250LD
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Board Time: | 6s | Transfer Height: | 900±20mm(or Customized) |
|---|---|---|---|
| Magazine Size(L*W*H): | 355*320*565 | Pressure: | 4-6bar,Max 10L/Min |
| Weight: | 140Kg | Color: | White |
| High Light: | pcb magazine loader,pcb handling equipment |
||
0.4mm PCB Board Automatic Loader Solutions with Customzied Magazine,SMTfly-250LD Specification Parameter:
| Model | SMTfly-250LD | SMTfly-330LD | SMTfly-390LD | SMTfly-460LD |
| PCB Size(L*W-L*W) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Machine Size(L*W*H) | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Magazine Size(L*W*H) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Weight | 140Kg | 180Kg | 220Kg | 230Kg |
0.4mm PCB Board Automatic Loader Solutions with Customzied Magazine Features:
- PLC control system;
- LED TFT touch screen control panel;
- Four step pitches selection(10,20,30,40mm);
- 2 magazines loading capability;
- With the special structure of anti clamping plate and foolproof;
- Direction from left to right or right to left(option);
- Standard SMEMA.
0.4mm PCB Board Automatic Loader Solutions with Customzied Magazine Technique Parameter:
| Board time | 6Sec |
| Magazine change time | 20Sec |
| Power Supply | 100-230V AC power(customer) |
| Pressure | 4-6bar,Max 10L/Min |
| Transfer height | 920±20mm(customized) |
| Transfer direction | Left - right or right-left |
| PCB Thickness | Min 0.4mm |
| Magazine | Upper conveyor: 1, lower conveyor: 1 |
| Step selection | 1-4(10mm step selection) |
| Single phase | Max 300VA |
Magazine for 0.4mm PCB Board Automatic Loader Solutions with Customzied Magazine:
