Panel Width: | ≤250 | PCB Width: | 8~210 |
---|---|---|---|
PCB Length: | 200mm(Min) | PCB Thckness: | 0.8~3.5 |
Power Source: | 110/220 | Blade Type: | Circular Blades |
Color: | White | Weight: | 260Kg |
High Light: | pcb v cutter,pcb v cut machine |

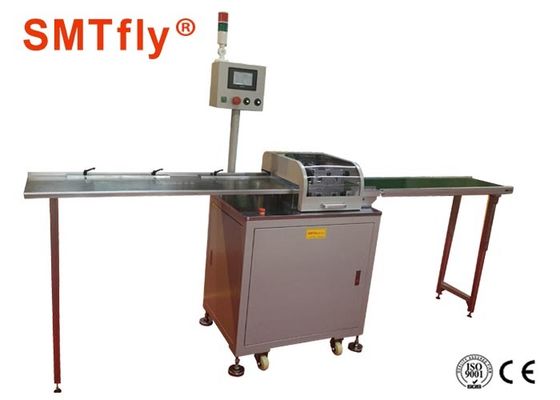

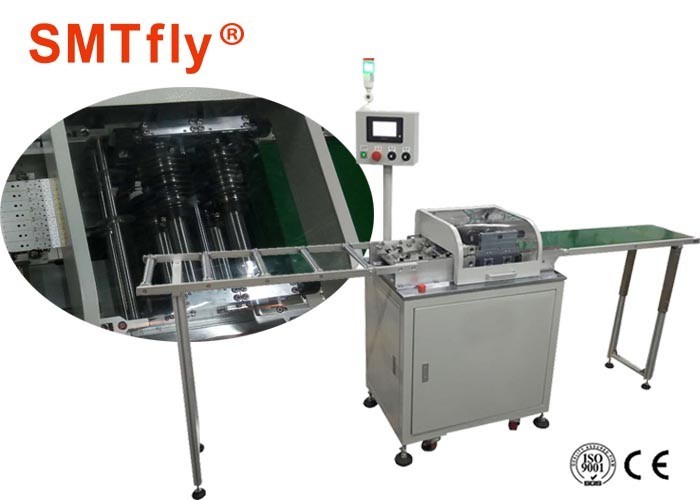

Automatic PCB Separator / PCB Depaneling / LED PCB Cutter Machine SMTfly-5Specificaiton:
A A:≥ 0.25mm |
|
Panel Width mm | ≤250 |
PCB Width mm | 8~210 |
PCB Length mm | 200mm(Min) |
PCB Thckness mm | 0.8~3.5 |
Depaneling Speed mm/min | 60~7500 |
Power Source VAC | 110/220 |
Power | 450 |
Weight Kg | 260 |
Automatic PCB Separator / PCB Depaneling / LED PCB Cutter Machine Feature:
Automatic PCB Separator / PCB Depaneling / LED PCB Cutter Machine Common Failture and Solution:
Faults | Reason | Solution |
1.No response when press power switch | a.No power | Connect power source |
b.Blown fuse | Check and replace fuse | |
2.Partial cutting | a.Guide bars go wrong position | Adjust guide bars |
b.Alignment is not the best | Adjust blade tips to match score lines | |
3.Not cut off | Blade clearance is too much | Adjust blade clearance |
4.Rough edge | Blade damaged | Re-sharpen or replace blades |
