FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System

China FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System supplier
FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System supplier FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System supplier

Large Image :  FPC Superfast Speed Solder Paste Printing Machine With Dry / Wet Cleaning System

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15 working days after payment
Supply Ability: 50Sets/Month
Detailed Product Description
Squeegee Type: Stainless Steel(Standard), Plastic Cleaning System: Dry,Wet,Vacuum (Programmable)
Repeat Position Accuracy: ±0.007mm Cycle Time: <8s (Exclude Printing & Cleaning)
Product Changeover: <5Min Printing Accuracy: ±0.015mm
High Light:

solder paste inspection equipment

,

pcb inspection machine

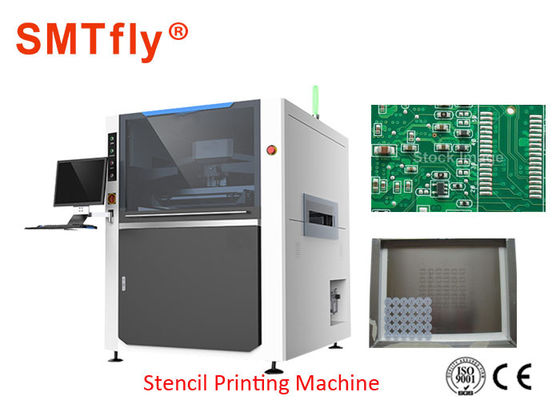

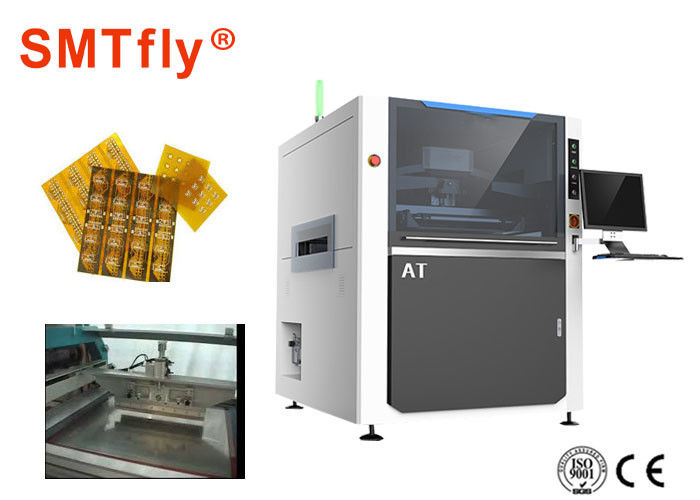

FPC Superfast Speed Full-auto Solder Paste Printer,SMTfly-AT Features:

1. Steel mesh positioning system

The size of steel mesh has good and wide applicability
The imported SMC cylinder is used as the cylinder.
Embedded scale, never fall off
Segmented fixed steel frame.

2. PCB transportation and positioning system

The inlet direction arbitrary selection, free combination
Special process of inner tooth transport belt, prevent card board
Programmable transport speed control can make the suspension more accurate
Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between PCB and steel mesh.

3. Cleaning system

Spray type cleaning
Dry, wet, vacuum-free combination
Separate cleaning structures
Circular cleaning rubber strip
Cleaning fluid, and steel net cleaning paper amount controlled.

4. Platform calibration system

UVW platform structure, high precision, large rigidity and compact structure
Triaxial linkage, small volume, high precision

5. Base and rack system

Solid forming Panasonic motor plus Japan original plant high precision ground wire rod
High rigidity, high stability of left and right symmetrical frame structure.

6. Electrical road system

Safe and concise circuit gas circuit layout
The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.

7. Operating system

Easy to learn easy to use friendly operation interface, with good man-machine dialogue function
The program file has teaching and navigation functions, and every step has a hint
Switch between Chinese and English
It has operation log, fault recording analysis and diagnosis.

8. Other functional options

Automatic point glue function
Automatic scanning function
Automatic add tin function
The whole line closed loop control
Constant temperature and humidity function
Steel mesh plugging function
Other functions can be customized according to customer's actual demand

FPC Superfast Speed Full-auto Solder Paste Printer,SMTfly-AT Specificaiton:


ModelSMTfly-AT
Screen FramesMin Size470X370mm
Max Size737X737mm
Thickness25~40mm
PCB Min Size50X50mm
PCB Max Size510*510mm
PCB Thickness0.4~6mm
PCB Warp age<1%
Transport Height900±40mm
Transport DirectionLeft-Right;Right-Left;Left-Left;Right-Right
Transport SpeedMax 1500mm/S Programmable
Board Location
PCB
Support SystemMagnetic Pin/Up-down table adjusted/support block
by hand
Clamping SystemSide clamping,vacuum nozzle
Print headTwo independent motorised print heads
Squeegee Speed6~200mm/sec
Squeegee Pressure0~15Kg Motor Control
Squeegee Angle60°/55°/45°
Squeegee TypeStainless steel(Standard), plastic
Stencil Separation Speed0.1~20mm/sec Programmable
Cleaning SystemDry,Wet,Vacuum (Programmable)
Table Adjustment rangesX:±10mm;Y:±10mm;θ:±2°
Solder Paste Inspection2D Inspection(standard)
Machine
Repeat Position Accuracy±0.007mm
Printing Accuracy±0.015mm
Cycle Time<8s (Exclude Printing & Cleaning)
Product Changeover<5Min
Air Required4.5~6Kg/cm2
Power InputAC:220±10%,50/60HZ 1Φ 3KW
Control MethodPC Control
Machine Dimensions1220(L)X1530(W)X1500(H)mm
Machine WeightApprox:1200Kg
