Double Head Automatic Glue Dispenser Machine Adjustable Spacing SMTfly-S

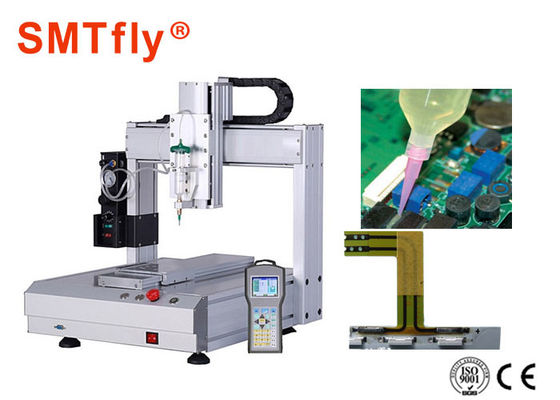

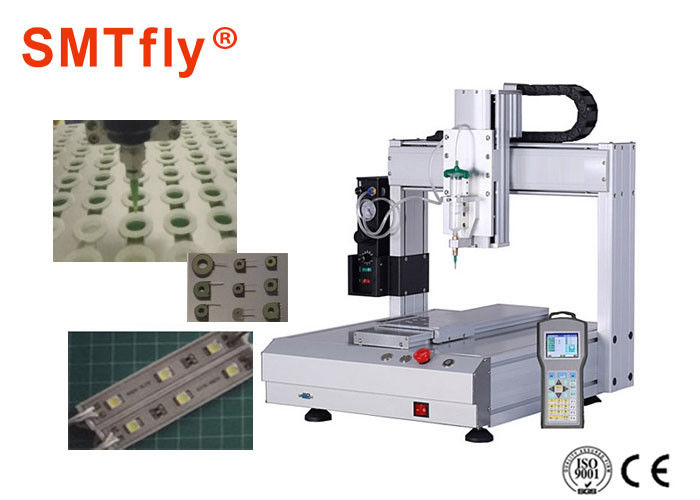

Large Image : Double Head Automatic Glue Dispenser Machine Adjustable Spacing SMTfly-S

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-S

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7-15 working days
Supply Ability:	30Set/Month

Contact Now

Detailed Product Description

X Axis:	200mm	Y Axis:	200mm
Work Power:	AC220V 50HZ	Top Speed:	500mm/Sec
Weight:	40Kg	Power:	200W
High Light:	automatic glue dispensing machine , conformal coating machine

Glue Dispensing Machine Automatic Glue Dispenser Glue Dispenser,SMTfly-S Features:

1. large size TFT color parameters, a variety of parameter settings and modify the path clear, easy to understand;

2. double head automatic dispensing, adjustable spacing, with drawing points, lines, surfaces, arcs, circles, irregular curves, continuous feeding and three axis linkage functions;

3. super storage memory capacity, and software with regional array, translation, rotation, computing and other functions;

4. glue size,speed, dispensing time, stop adhesive time all can set parameters, the quantity of cement stable, without leaking and dripping;

5. can import AUTO CAD file function, precise and simplified operation;

6. can match the automatic feeding and discharging mechanism, improve production efficiency and enterprise production competitive advantage;

7. according to need, can install workbench, positioning PIN, glue gun or floor heating control device

8. optional long fine tuning needle, Multi simultaneous operation, doubling work efficiency;

9. intelligent rubber breaking function, to prevent pulling glue, that is, save glue, and reduce the repair process;

10. glue time control resolution 1ms;

11. single plate fixture cycle more work,improve the work efficiency.

Glue Dispensing Machine Automatic Glue Dispenser Glue Dispenser,SMTfly-S Specification:

Parameter		Parameter values
Working stroke	X axis	200mm
	Y axis	200mm
	Z axis	50mm
Loco motor system	High efficiency three phase stepping motor + precision slide way slider
Control system	Professional 3 axis motion controller (extended to four axis control)
Editing system	Teach programmer +PC host computer software (can run complex graphics)
External interface	RS-232 USB2.0
Work power	AC220V 50HZ
Power	200W
Top speed	500mm/Sec
Repeat ability accuracy	+ 0.02mm
Biggest negative heavy	X, Y axis, 10kg and Z axis, 4kg
Interpolation random parts	Hand held display box, serial line
Control model	Point, line, 3D line and arc interpolation
Weight	40KG
Overall size	600 mm (L)* 520 (W)mm * 570(H) mm

Glue Dispensing Machine Automatic Glue Dispenser Glue Dispenser Application:

The general application of mechanical parts and automobile coating, mobile phone keypad dispensing, mobile phone battery package, notebook battery package, coil dispensing, PCB plate bonding sealing glue, IC glue sealing, horn ring dispensing, PDA encapsulation, LCD encapsulation, IC package, IC adhesive bonding, shell, optical components processing, mechanical seal etc..
