Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A

China Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A supplier
Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A supplier Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A supplier

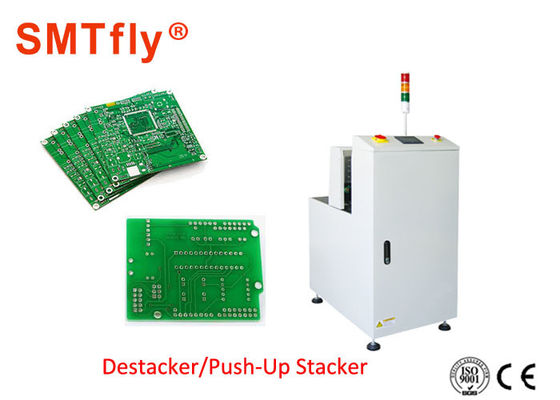

Large Image :  Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-DB350A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Plywood case
Delivery Time: 7-15 working days
Supply Ability: 100Sets
Contact Now
Detailed Product Description
Cycling Time: 8s Transfer Height: 900±20mm(or Customized)
Air Volume: Max 20L/Min Power Load: Max 150V/A
PCB Thickness: Min 0.6mm Weight: 110Kg
Highlight:

pcb magazine loader

,

pcb loader machine

PCB Destacker Push-Up Stacker- PCB Loader Unloader,SMTfly-DB350A Features:



Stable and reliable integrated control system;

Easy to operate touch LED buttons or touch screen control interface;

Machine always fault monitoring;

Optional pass working mode;

Smooth and parallel width adjustment(lead screw);

Small machine footprint;

SMEMA port is compatible.



PCB Destacker Push-Up Stacker- PCB Loader Unloader,SMTfly-DB350A Specification Parameter:



Model SMTfly-DB350A SMTfly-DB460A
PCB Size(L*W-L*W) 50*50~450*350 50*50~550*460
Size(L*W*H) 600*825*1200 700*925*1200
Weight 110Kg 160Kg



PCB Destacker Push-Up Stacker- PCB Loader Unloader Technique Parameter:



Max PCB’s capacity 300PCS(0.6mm thickness PCB)
Cycling time 8 Sec
Air pressure 4-6 bar
Air volume Max 20L/Min
Power supply 100-230V AC(customized),single phase
Power load Max 150V/A
Transfer height 900±20mm(or customized)
Transfer direction Left - right or right-left
Power load Max 150V/A
Air volume Max 10L/minute
PCB thickness

Min 0.6mm
Application The equipment is used to collect bare PCBs at the end of SMT production line.

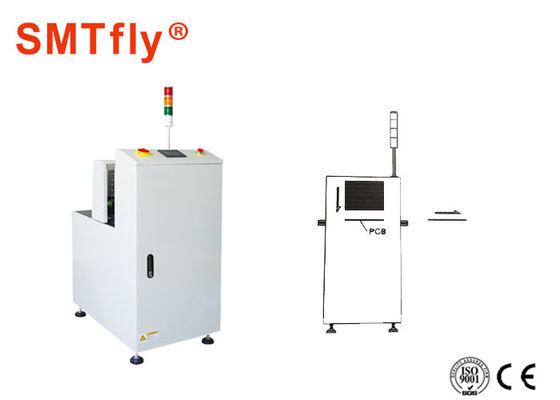

Sample for PCB Destacker Push-Up Stacker- PCB Loader Unloader:



                  Push - Up Stacker PCB Loader Unloader 8s Cycling Time 600*825*1200 SMTfly-DB350A
