5KW Selective Soldering Machine , Industrial Laser Welding Machines SMTfly-LSS

China 5KW Selective Soldering Machine , Industrial Laser Welding Machines SMTfly-LSS supplier
5KW Selective Soldering Machine , Industrial Laser Welding Machines SMTfly-LSS supplier 5KW Selective Soldering Machine , Industrial Laser Welding Machines SMTfly-LSS supplier

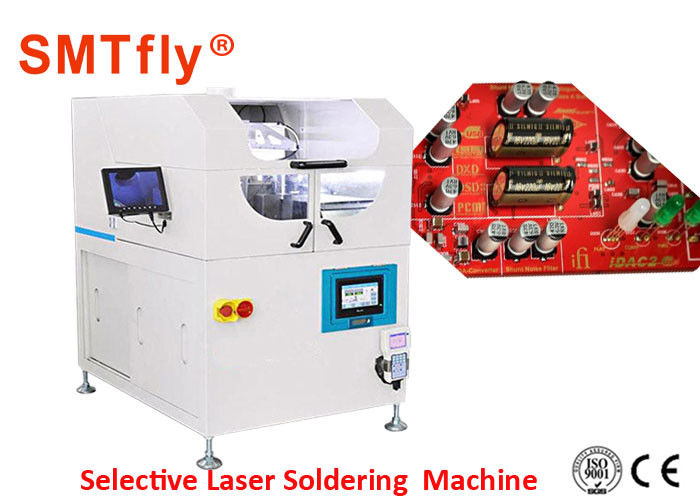

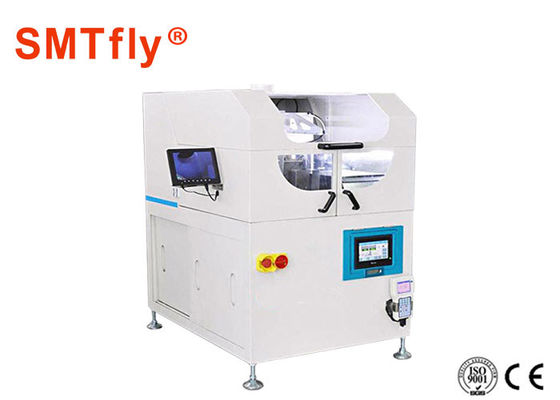

Large Image :  5KW Selective Soldering Machine , Industrial Laser Welding Machines SMTfly-LSS

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-LSS

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 50Sets/Quarter
Detailed Product Description
Total Power: 5KW Melting Time: 20-30 Minutes
Tin Groove Power: 1.2KW Power: Single Phase 220V 50HZ
Weight: 200Kg Color: White
High Light:

laser spot welding machine

,

automatic pcb soldering machine

Selecting Laser Selective Soldering for Industrial Laser Solutions,SMTfly-LSS Features:



when selective soldering, only a certain region of contact with solder wave, will not melt adjacent near other components and solder joints.



Selecting Laser Selective Soldering for Industrial Laser Solutions,SMTfly-LSS Specifications:



Entry Name Technical Parameters
Machine model SMTfly-LSS
Total power 5KW
Power Single Phase 220V 50HZ
Tin Tank Capacity 15kgs/furnace
Melting Time 20-30 Minutes
Tin Groove Power 1.2KW
Small Wave Soldering Nozzle Custom Shape
Size L850*W1100*H1340mm
Weight 200KG



Selecting Laser Selective Soldering for Industrial Laser Solutions,SMTfly-LSS:



Laser soldering is often applied as selective laser soldering. Selective soldering processes are used in applications where other conventional selective soldering techniques reach their limits. These limits can be for example defined by temperature-sensitive components. The transfer of heat and energy through the laser beam provides the user with many advantages, especially with view to the miniaturization of sub-assemblies or sensitive components.

During the soldering process, the filler metal or alloy is heated to melting temperatures < 450°C by laser. Therefore lasers with lower output powers (typically < 100 Watts) are used to melt the wire material, soldering paste or solder deposits so that it flows in between the two closely fitted joining materials.

For soldering small parts or components within the semiconductor, electronic or optoelectronic device manufacturing or assemblies industry, the diode laser is the right choice. Diode lasers are used for selective soldering because the laser power can be precisely controlled by an analog signal and the heat input into the material is very localized. That is why laser soldering is most advantageous, compared to traditional soldering methods. The process does not damage or input heat into nearby components. That is why even very small electronic components, in the range of a few tenths of a millimeter, as well as heat sensitive electronic parts can be processed.

Fast power controllability combined with a non-contact temperature measurement to minimize thermal damage make the diode laser an ideal tool for this application.

Conventional selective soldering techniques, such as e.g. the soldering iron, need a direct mechanical contact between the soldering tool and the solder joint, or the soldering tool has to be very close to the solder joint. Yet, in many cases, this is not possible due to a lack of space. Furthermore, within conventional selective soldering processes, the energy input is either not or is very slowly able to be influenced during the soldering process.
