LCD Displayautomatic Screw Driving Machine Higher Efficiency SMTfly-AS

China LCD Displayautomatic Screw Driving Machine Higher Efficiency SMTfly-AS supplier
LCD Displayautomatic Screw Driving Machine Higher Efficiency SMTfly-AS supplier LCD Displayautomatic Screw Driving Machine Higher Efficiency SMTfly-AS supplier

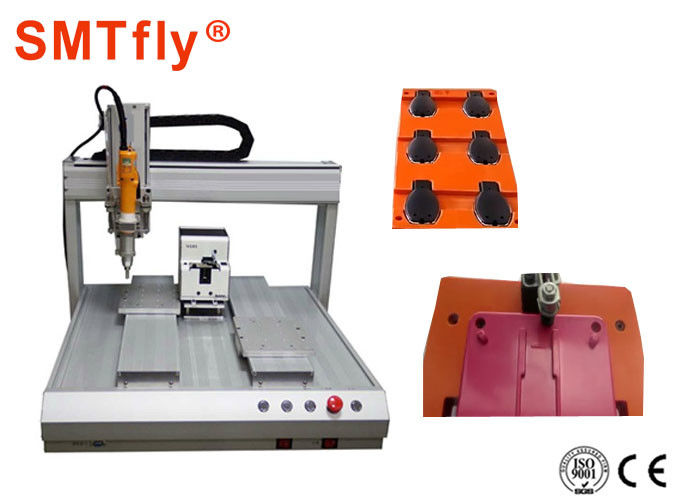

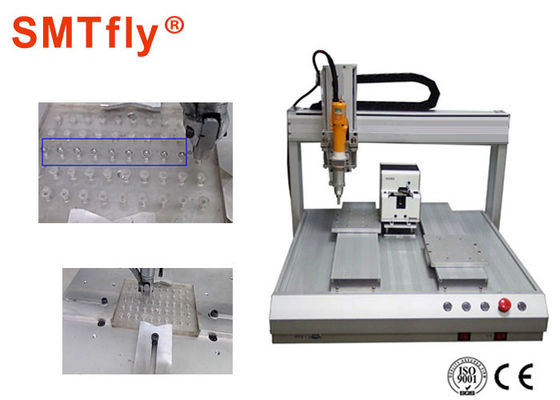

Large Image :  LCD Displayautomatic Screw Driving Machine Higher Efficiency SMTfly-AS

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-AS

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 100Sets/Month
Detailed Product Description
Air Pressure: 0.4Mpa Power: 220V 50HZ
Precision: ±0.02mm Payment Terms: T/T L/C
Program: Teaching Type Control System: PLC+TP
High Light:

auto screwdriver machine

,

automatic screw driving machine

0.02mm Precision LCD Display Desktop Screw Driver Higher Efficiency,SMTfly-AS Specification:



Model SMTfly-AS
Brand Name SMTfly
Certification CE ISO
Type Precision Screwdriver
No-Load Speed 500mm/sec
Air Pressure 0.4Mpa
Application Screw Hear All Type
Usage Lock ,Screw ,Automatic Screw Feeding
Power 220V 50HZ
Outline Size 600*840*640mm(L*W*H) 170*255*40mm(X*Y*Z)
Driver Six axis step motor
Precision ±0.02mm
Control system PLC+TP
Feeding Absorption type
Program Teaching Type
COM USB
Voltage 220VAC,50HZ
Program Recording Mode 100set,4000 Points(USB SUPPORT COPY)
Weight 80KG
Payment Terms T/T L/C
Packaging Plywood case
Display model Teaching pendant LCD(320*240) or touch screen
Motor system Japan precision micro-stepper motor
Drive mode timing belt + screw rod +guide rail
Power AC110V/220V 300W(internal switch)
I/O signal 12 Inputs/12 Outputs
Control RS232
Edit model Teach pendant
Working Environment Temperature 5-40℃
Working Environment Humidity 20-90%
Suite model M1.2-M3.0



LCD Display Desktop Screw Driver Higher Efficiency,SMTfly-AS Features:



  • Have smart detection function, like missing screwing/screw stand out /screw loose…etc;
  • Good flexibility, like universal fixture for different size mobile phone;
  • Good generality: adapt for M1.0-M4 by change in the screw guider;
  • Perfect machine outline: small outline size is suit for different cell line configuration;
  • Auto mode don’t need operator and no waiting time.



LCD Display Desktop Screw Driver Higher Efficiency,SMTfly-AS Advantage:



Reduce cost: Locking two kinds of screws at the same time,the staff can operate quickly,improve the efficiency.

Efficiency: Fastening two kinds of screws at the same time,higher efficiency, and 3600-4000pcs screw per hour, no waiting.

More relax: single equipment for single worker, Just finished loading.

Reliability: Automatic alarm system, work 20 hours more.

Generality: Touch screen display programmable achieve more operations,Through a simple programming,can be put into production, convenient for production and management.



LCD Display Desktop Screw Driver Higher Efficiency,SMTfly-AS Application:



Mobile phones,car electronic products,household appliances,power supply,instrument equipment,LED, computer keyboards, PAD, toys and so on.
