Detailed Product Description

Power:	10W/20W/30W	Marking Area:	110mmx110mm
Laser Wavelength:	1064nm	Laser Marking Depth:	≤5mm
Beam Quality:	M2 <1.5	Power Input:	220V‐50HZ
High Light:	pcb marking system , co2 laser marking machine

High Precision PCB Laser Marking Machine with CO2 Lser Marking Machine,SMTfly-DB6A Specification:

Device Item No.	SMTfly-DB6A10	SMTfly-DB6A20	SMTfly-DB6A30
Power	10W	20W	30W
Laser Brand	SMTfly
Laptop Computer	Including one laptop for each set, build‐in laser marking software.
Laser Marking Machine Type	Portable, optional for desktop laser marking devices items.
Laser Wavelength	1064nm
Device Marking Area	110mmx110mm
Optional Marking Area	210mmx210mm / 310mmx310mm
Laser Marking Depth	≤5mm(depending on material and marking time).
Laser Marking Speed	≤7,000 mm/s
Minimum Line Width	0.01mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life‐span of Fiber Laser Marking	100,000 hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted.
System Operation Environment	Windows XP / Win7(32/64bits) / Win8(32/64bits)/Win10.
Cooling Mode	Built‐in fan for Air cooling.
Power Input	220V‐50HZ(single phase) or 110V‐60HZ(single phase).
Laser marking software	Ezcad professional marking software, English version.

High Precision PCB Laser Marking Machine with CO2 Lser Marking Machine Features:

High precision and speed. Marking depth can be controlled easily. Continue working no need mainte nance;
U.A.S imported RF tube together with high speed galvanometer and path expander fans system. sta ble path fast marking;
BML-CG economic design with glass CO2 tube .High power big working site with lower price;
Industry computer, strong anti-interference and adaptation stable working position for 24 working;
Red position system avoids material waste;
Multi-function software with friendly interface support win7/xp/2000 together with many languages version. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN cod e;
Supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot;
Free control system and outside equipment.

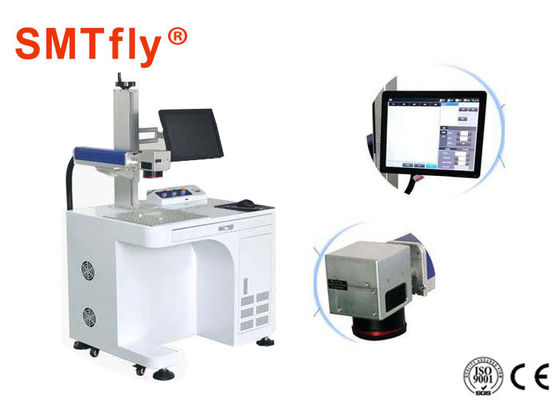

High Precision PCB Laser Marking Machine with CO2 Lser Marking Machine:
